DIY Patio or Pool Shade Pergola Kit

About this Pergola Kit Configuration:

• Type: Free-standing (see the attached-to-house version of pergola side shade kit)
• Bracket size: 6x6 (see the smaller 4x4 version of this kit)
• Roof style: Shade canopies (see this same kit with brackets for a wooden roof with inline, traditional, square or angled rafters)
• Privacy wall(s): 1 privacy sun shade (see this same kit with no privacy sun shades or with privacy sun shades on 2 walls)


Want something completely different? Use our easy design tool to create your own pergola configuration.

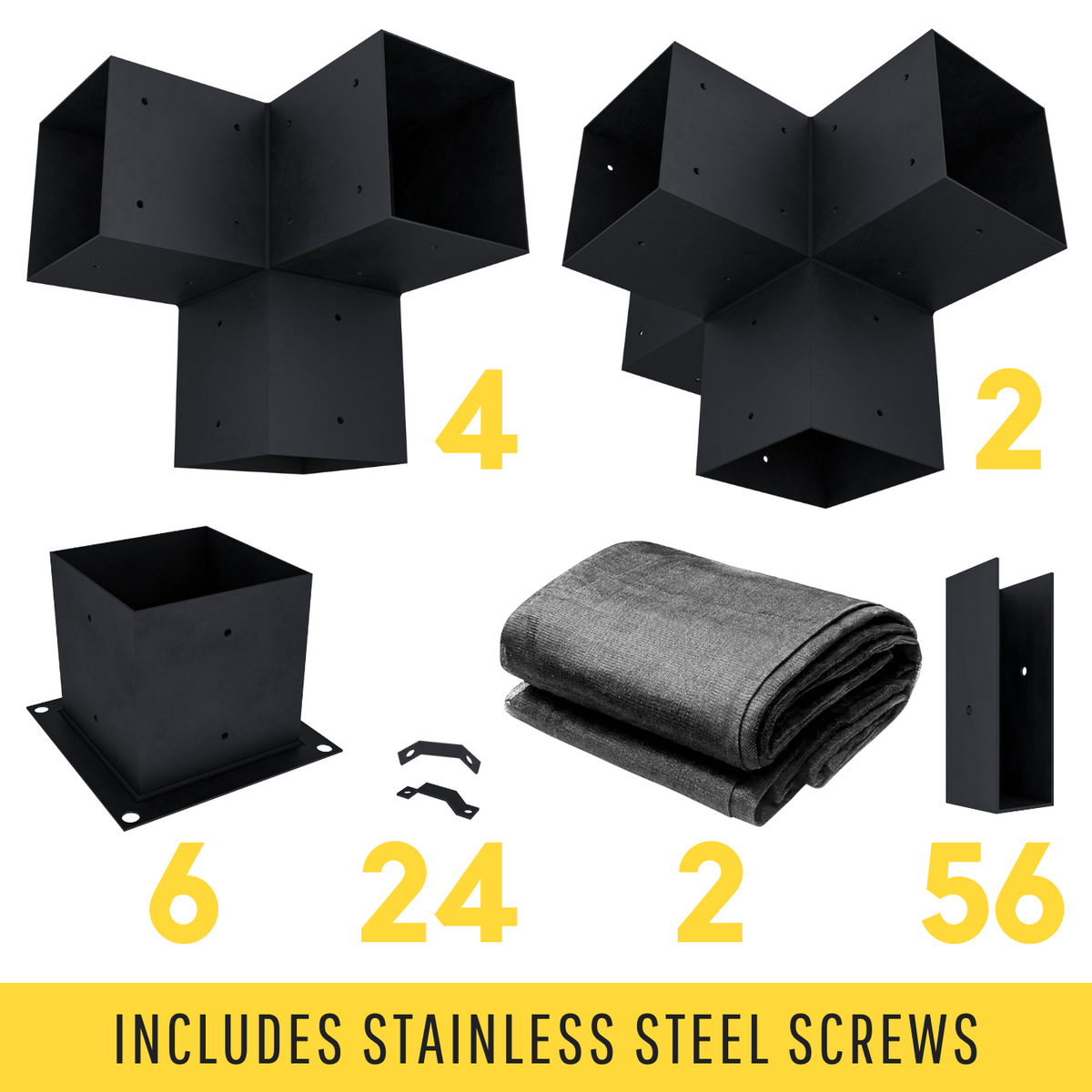

Included in this Free-Standing Pergola Side Shade Kit:

• 6x base brackets (for 6x6 wood)
• 4x 3-arm post brackets (for 6x6 wood)
• 2x 4-arm post brackets (for 6x6 wood)
• 2x shade canopies (each up to 12' x 12' in your choice of 2 colors)
• 1x privacy sun shade for a wall (up to 8' x 12' in your choice of 2 colors)
• 36x corner accessory mounts and side accessory mounts (combined) for mounting the 2 shade canopies
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets to a solid foundation are NOT included and will need to be purchased locally

This pergola side shade kit will accommodate any stand-alone pergola ranging from 16-24 feet by 8-12 feet. The pergola does not need to be the exact dimensions shown in the images on this page.

The kit includes 2 shade canopies (each up to 12' x 12') in your choice of 2 colors: charcoal (dark gray) or eggshell (a very light beige). The shade canopies are made of fade-resistant 180 GSM High-Density Polyethylene (HDPE) knitted fabric that blocks up to 95% of UV rays and is permeable to prevent rain from pooling on top. Each side of each canopy has 4 straps to keep the canopy tight and prevent drooping. The kit also includes all necessary corner and side accessory mounts (including screws) to secure the canopy straps to the beams of the pergola.

This pergola kit also includes a privacy sun shade for one wall (up to 12' wide x 8' tall), available in the same 2 colors (charcoal and eggshell). The sun shade is made of the same material as the two shade canopies and also comes with all the necessary corner and accessory mounts (including screws) to secure the sun shade to one side of the pergola (and to the ground, if desired).

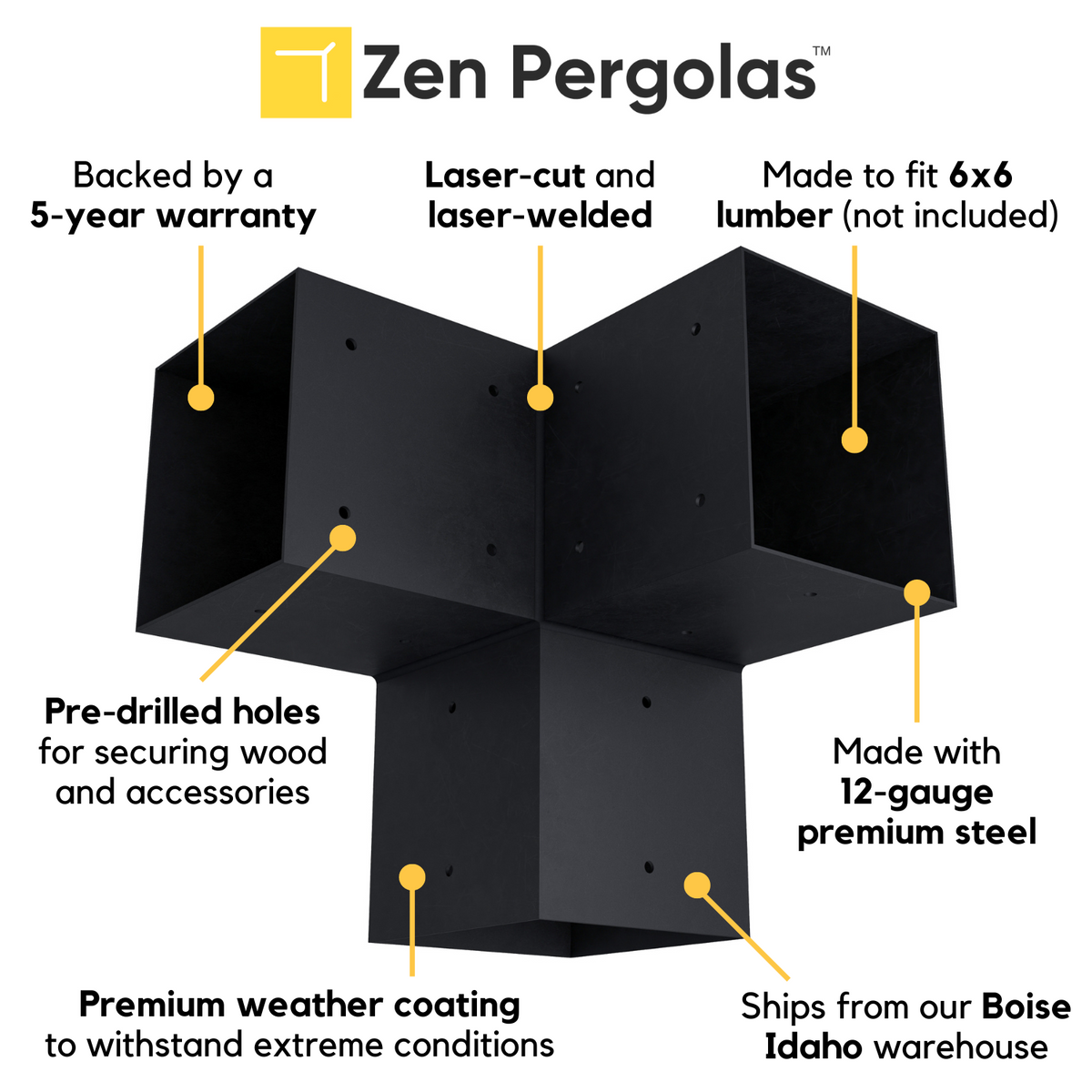

About Our Steel 6x6 Pergola Brackets:

• Made with premium quality steel
• Made of 12-gauge steel (~2.6mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5" x 5.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
