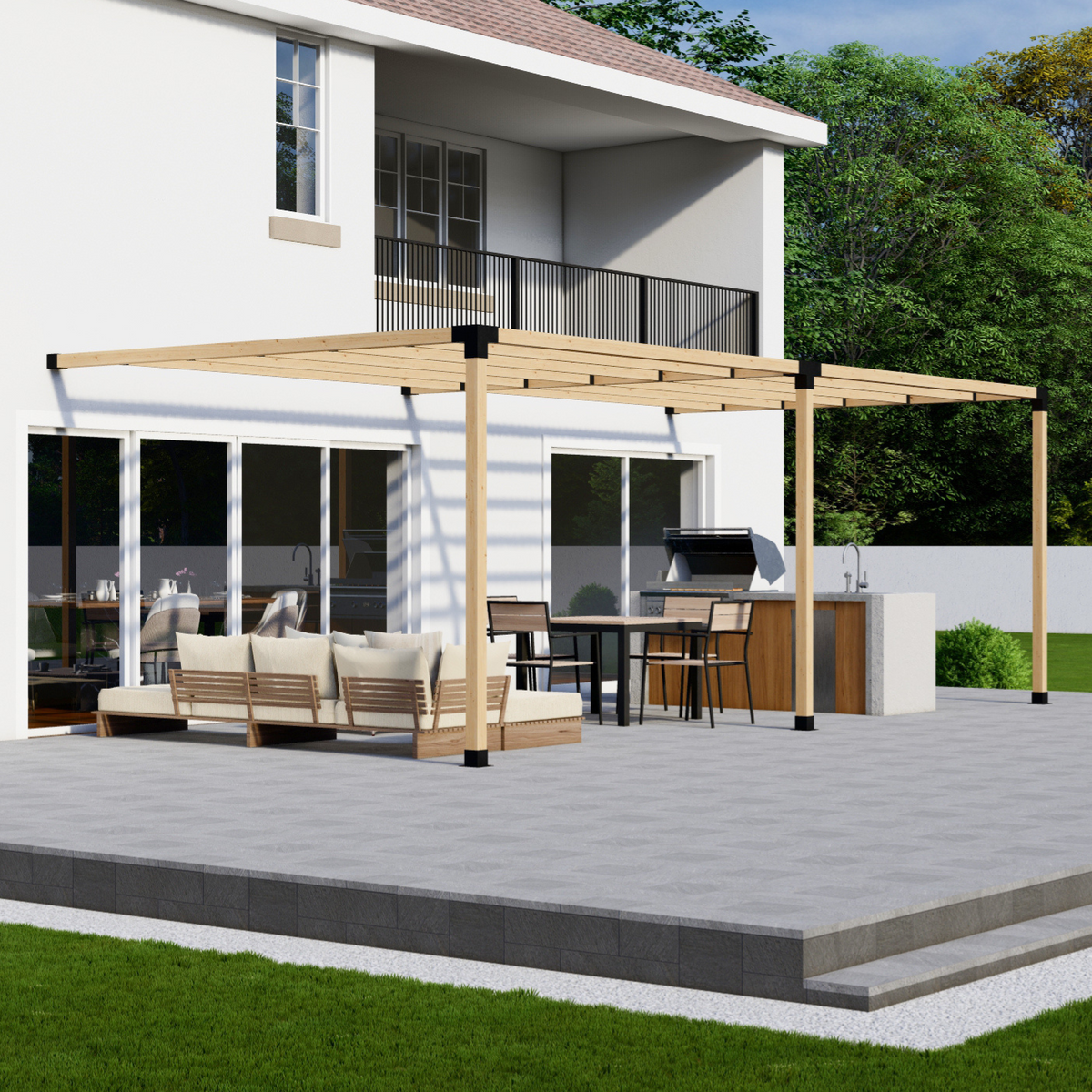

Kit to Build Pergola Off House

About this Pergola Kit Configuration:

• Type: Attached to house (see the free-standing version of this kit)
• Bracket size: 4x4 (see the larger 6x6 version of this kit)
• Dimensions: Up to 24' attached x 12' out from home (see the inverse up to 12' attached x 24' out from home version of this kit)
• Roof style: Straight inline rafters (see this same kit with a traditional, square posts or angled slats roof)
• Privacy wall(s): None (see this same kit with 1 or 2 privacy walls)
• Rafter spacing: Far (see this same kit with medium or close rafter spacing)

Want something completely different? Use our easy design tool to create your own pergola configuration.

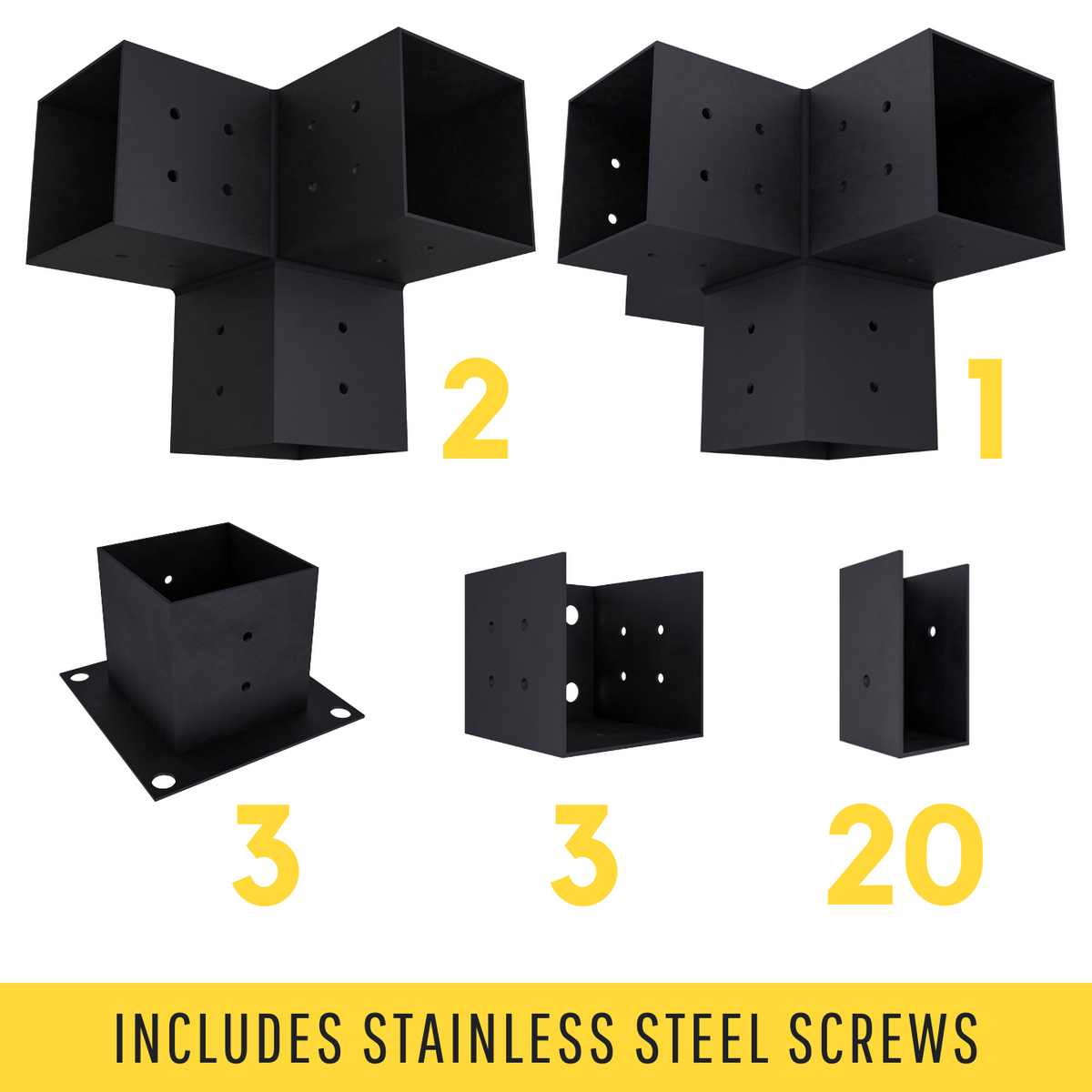

Included in this Pergola Off House Kit:

• 3x base brackets (for 4x4 wood)
• 3x wall-mount brackets (for 4x4 wood)
• 2x 3-arm post brackets (for 4x4 wood)
• 1x 4-arm post bracket (for 4x4 wood)
• 20x 2x4 insert brackets for 10 roof/wall slats (2x4 wood)
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

This pergola off house kit will accommodate any wall-mounted pergola ranging from 13-24 feet wide (attached to the house) by 4-12 feet deep. The pergola does not need to be the exact dimensions shown in the images on this page.

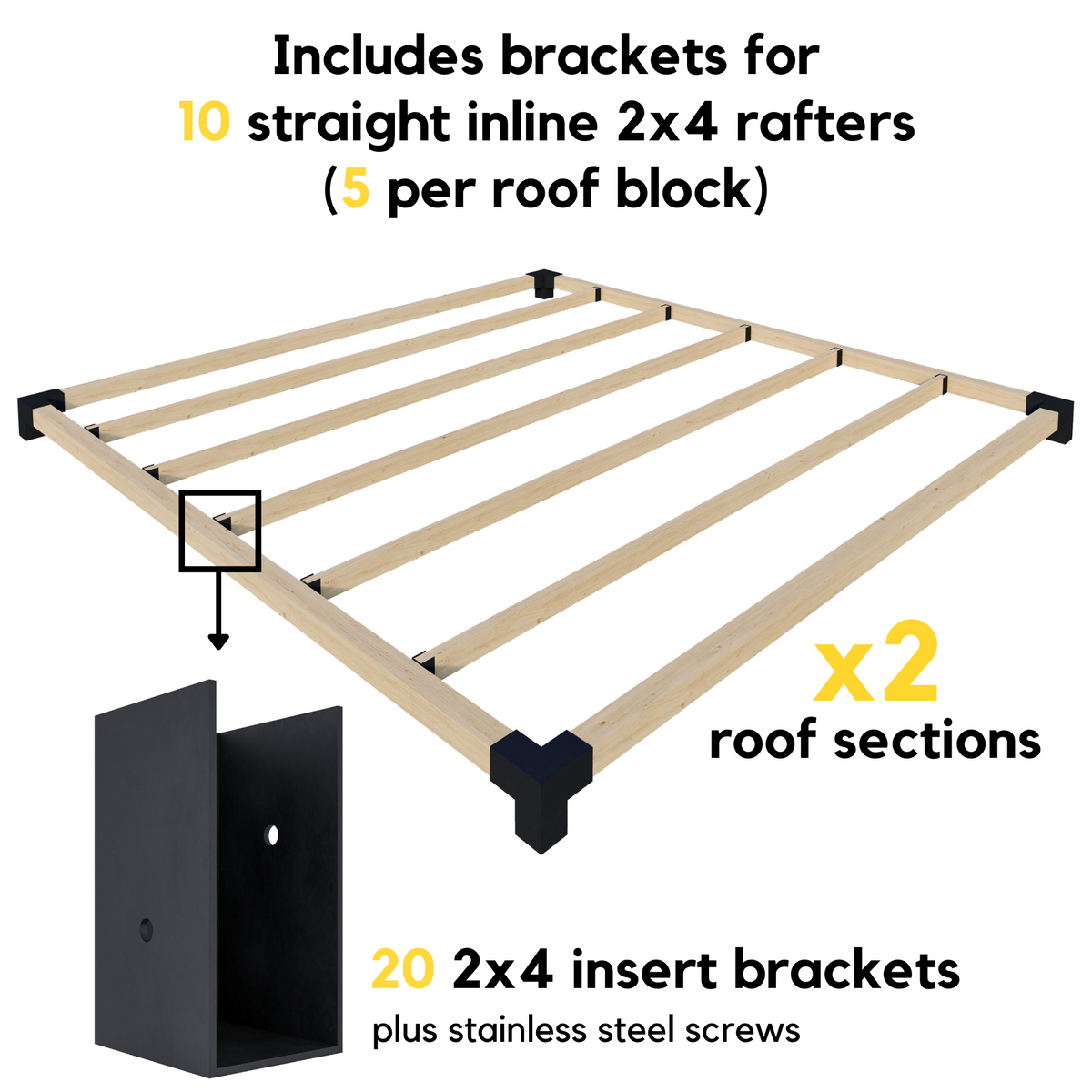

The kit includes 20 2x4 insert brackets. While the intent is that all 20 of these brackets will be used to insert 5 roof rafters over each of the 2 roof sections (12' span each with far slat spacing), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, increasing the number of slats in a roof/wall section, etc.). You can also purchase additional 2x4 insert brackets here.

Want a Larger 6x6 Frame?

Click here to see this same pre-configured pergola off house kit but with larger 6x6 wood posts and 2x6 roof rafters (instead of 4x4 wood posts and 2x4 roof rafters).

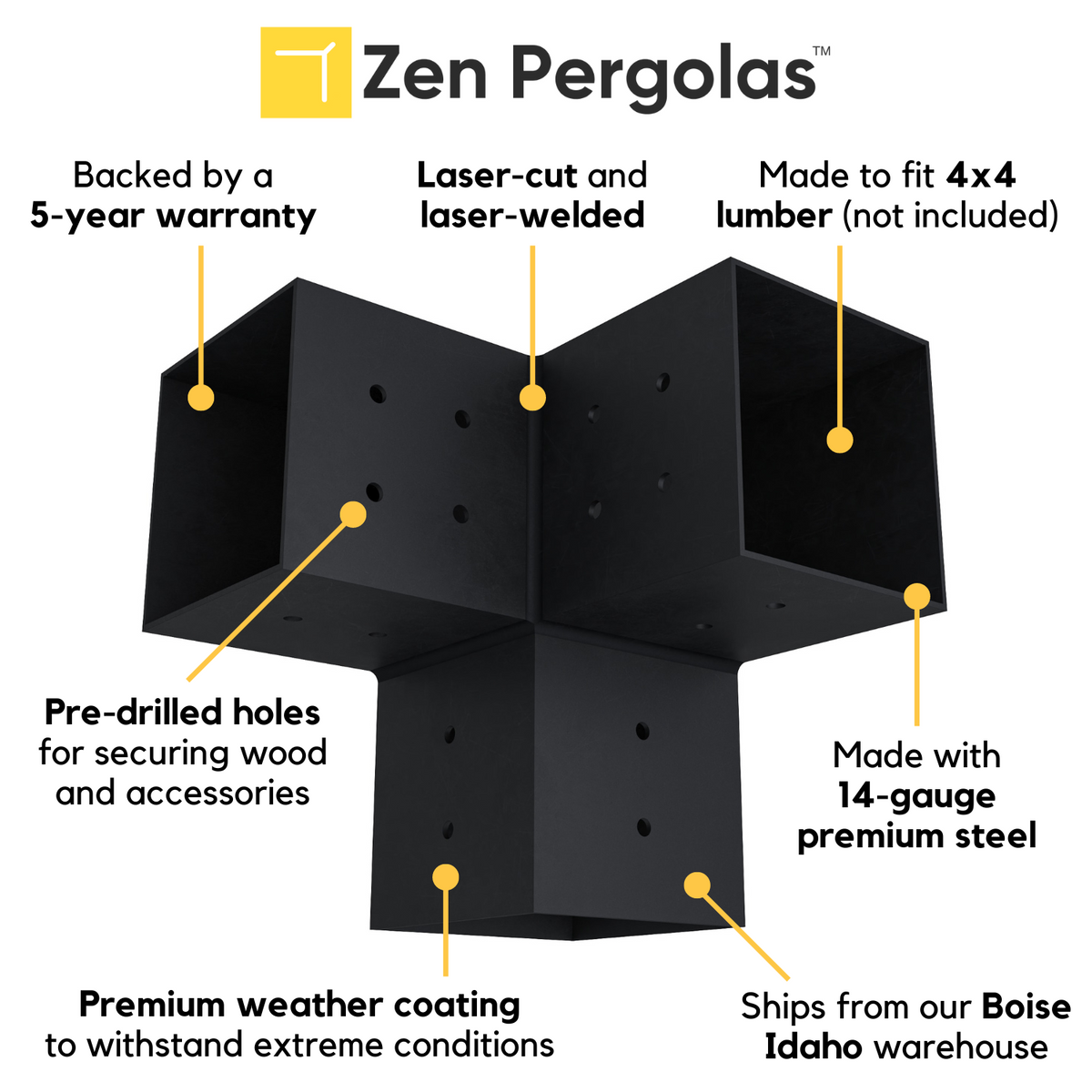

About Our Steel 4x4 Pergola Brackets:

• Made with premium quality steel
• Made of 14-gauge steel (~2.0mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
