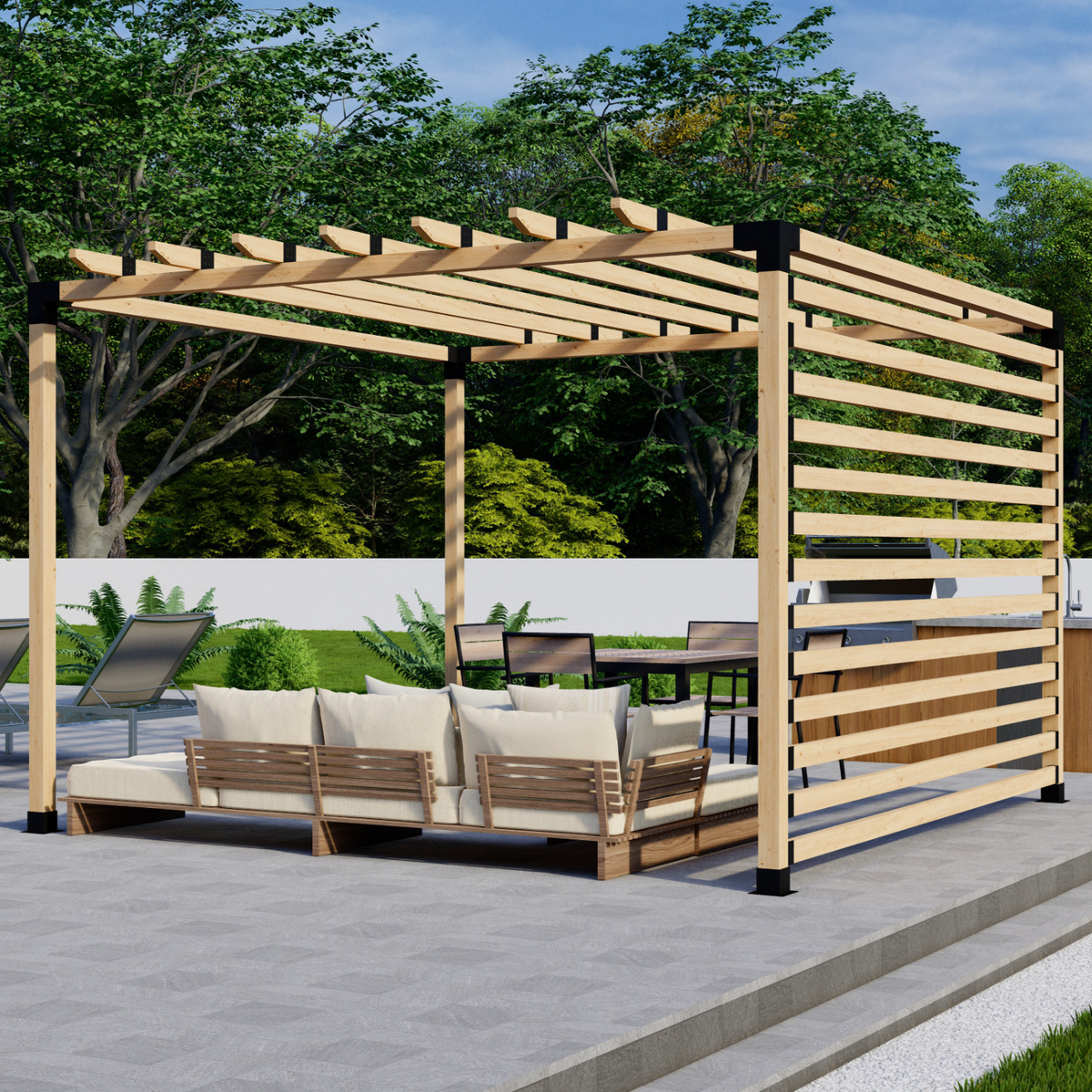

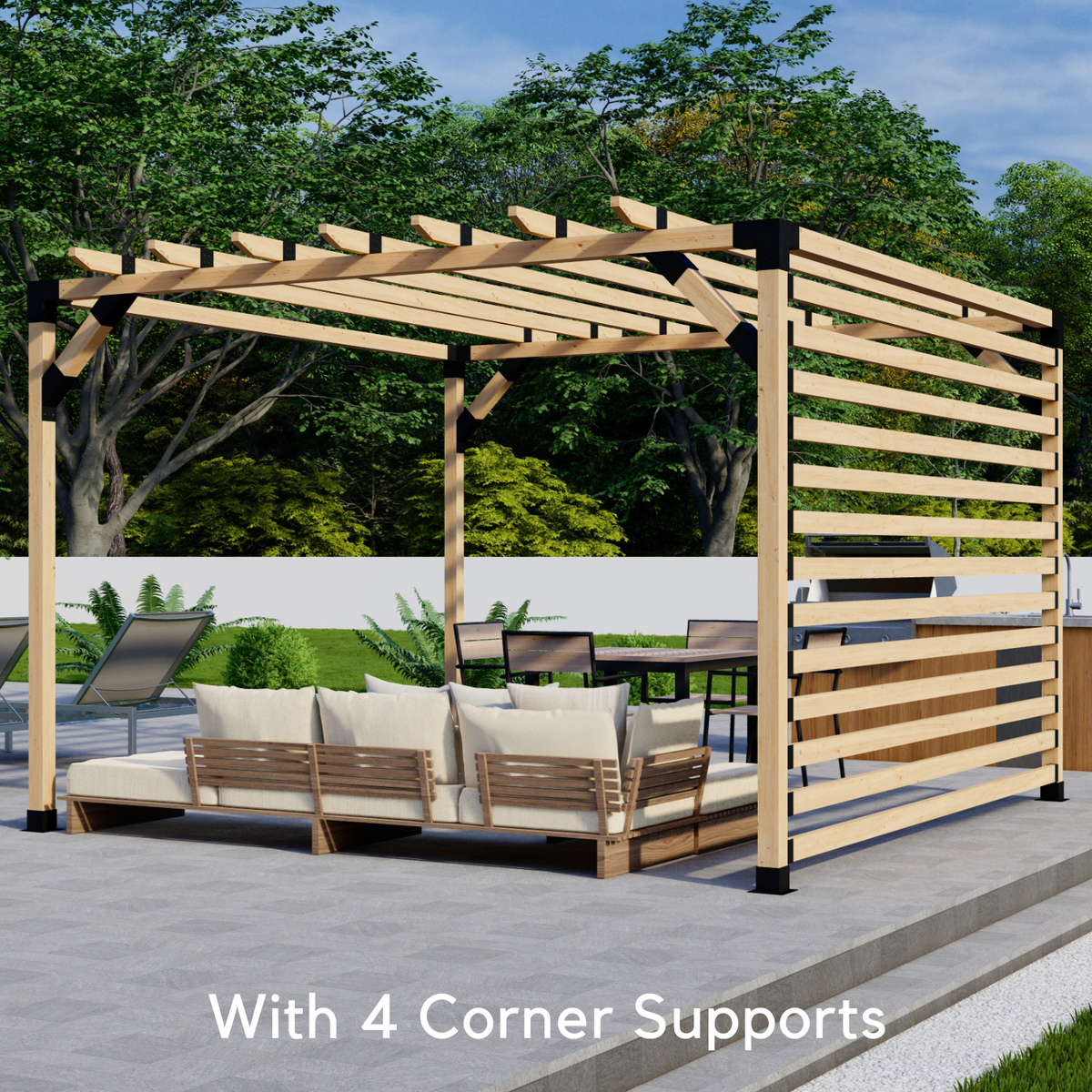

DIY Kit for a Small Pergola With Roof

About this Pergola Kit Configuration:

• Type: Free-standing (see the attached version of this kit)
• Bracket size: 4x4 (see the larger 6x6 version of small pergola with roof)
• Roof style: Traditional w/ rafters atop beams (see this same kit with an inline, square posts or angled slats roof)
• Privacy wall(s): 1 (see this same kit with no privacy wall)
• Roof/wall slat spacing: Medium (see this same kit with far or close spacing)

Want something completely different? Use our easy design tool to create your own pergola configuration.

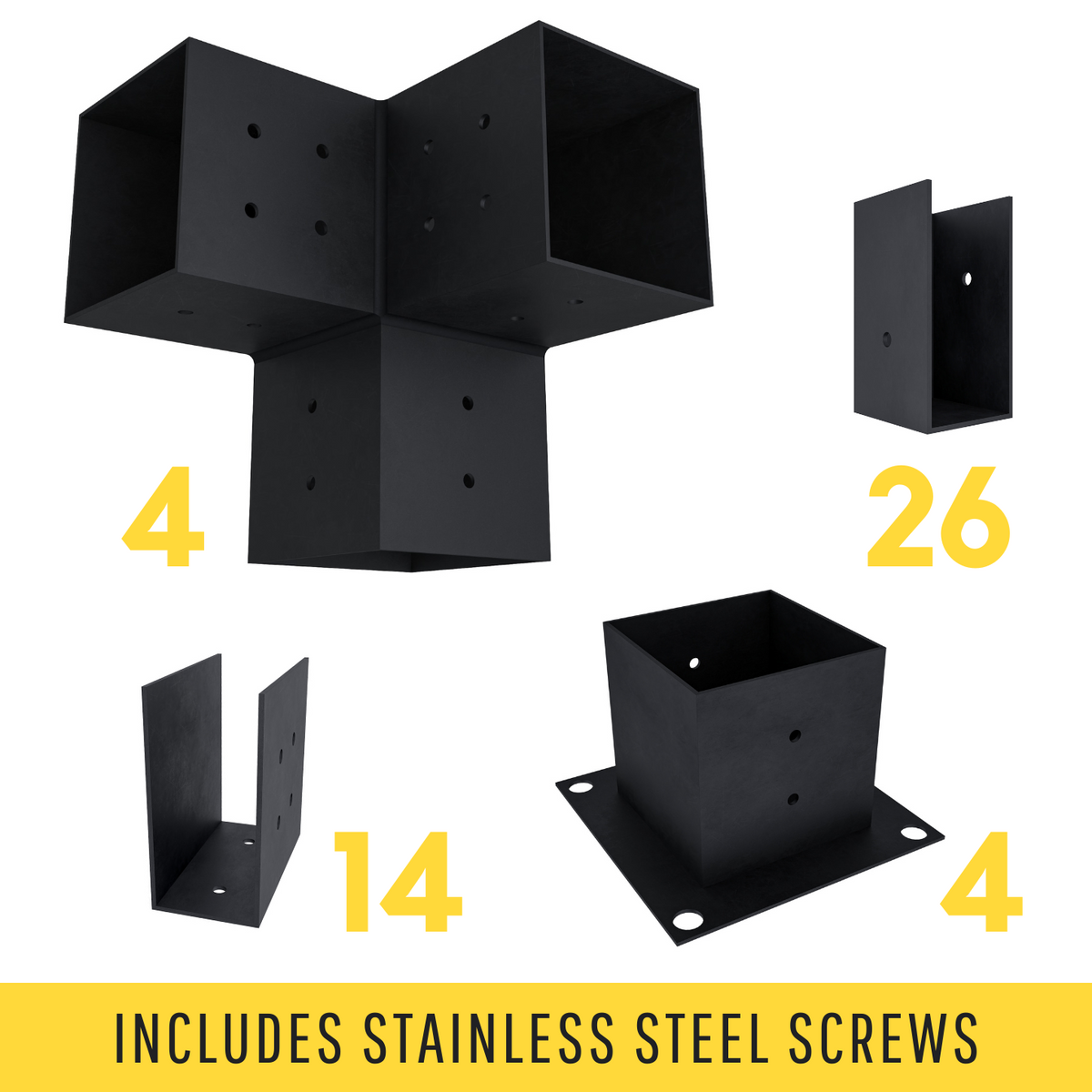

Included in this Kit for a DIY Small Pergola with Roof + Privacy Wall:

• 4x base brackets (for 4x4 wood)
• 4x 3-arm post brackets (for 4x4 wood)
• 14x 2x4 rafter brackets for 7 roof rafters (2x4 wood)
• 26x 2x4 insert brackets for 13 wall slats (2x4 wood)
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets to a solid foundation are NOT included and will need to be purchased locally

This kit for a small pergola with roof and privacy wall will accommodate any stand-alone pergola ranging from 4-12 feet by 4-12 feet. The pergola does not need to be the exact dimensions shown in the images on this page.

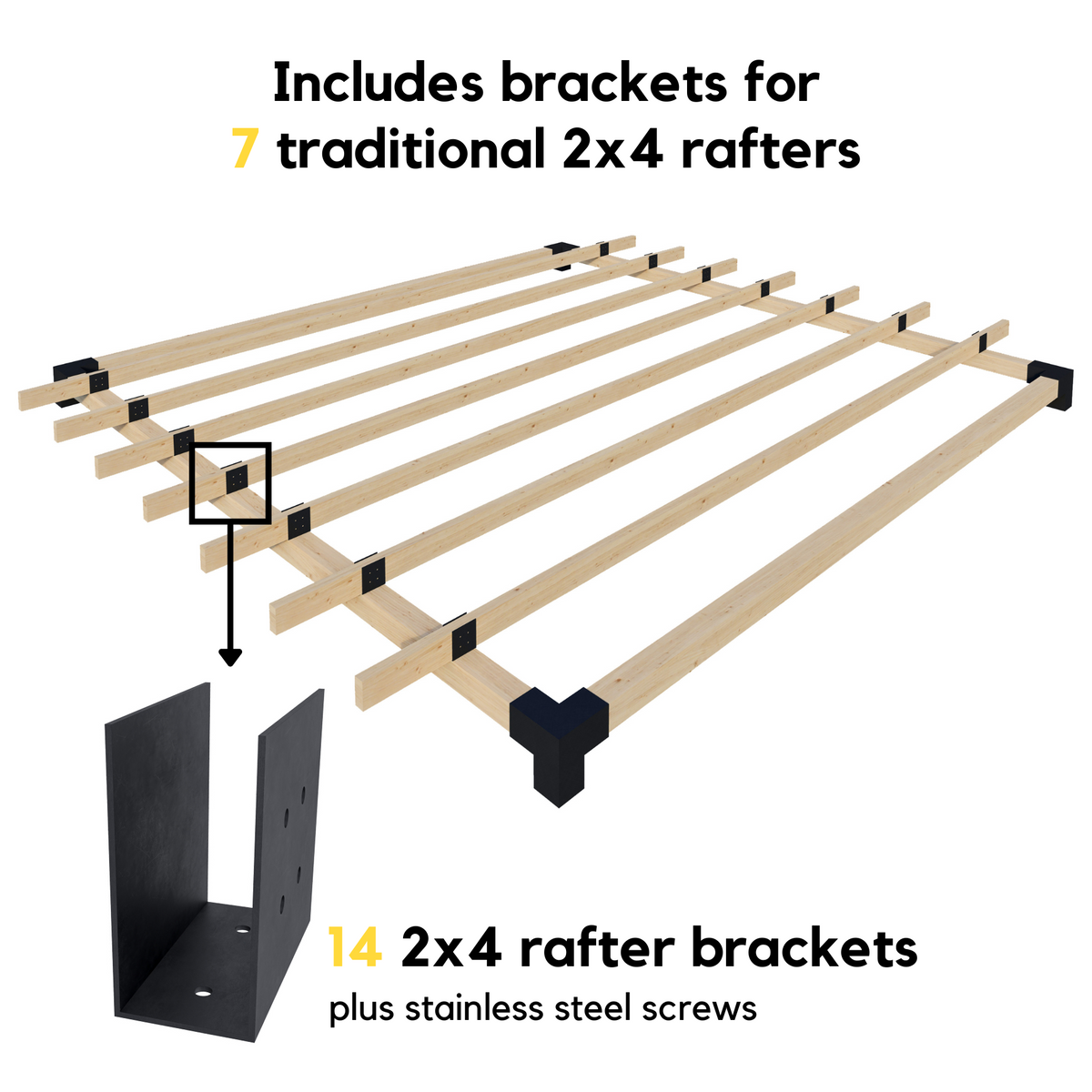

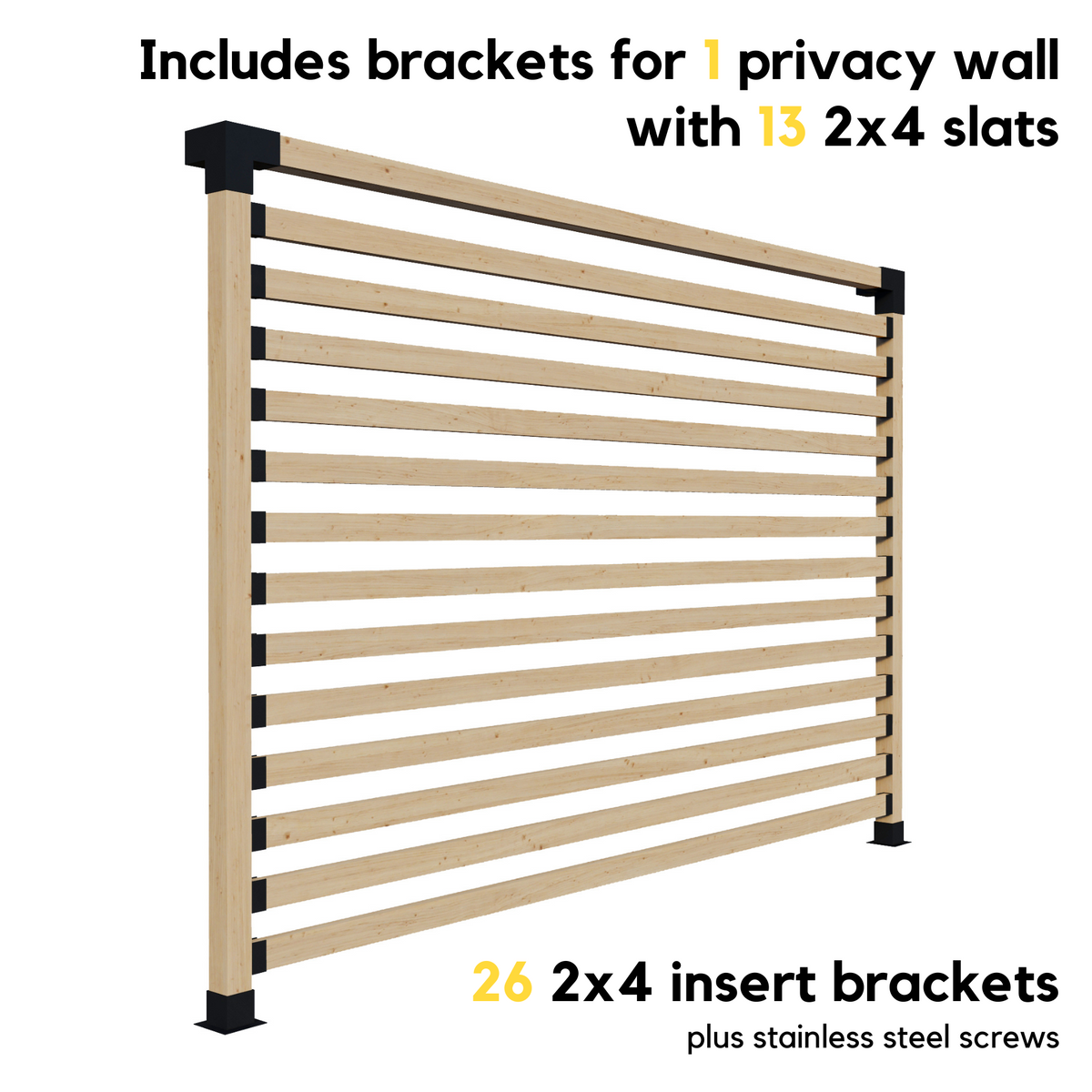

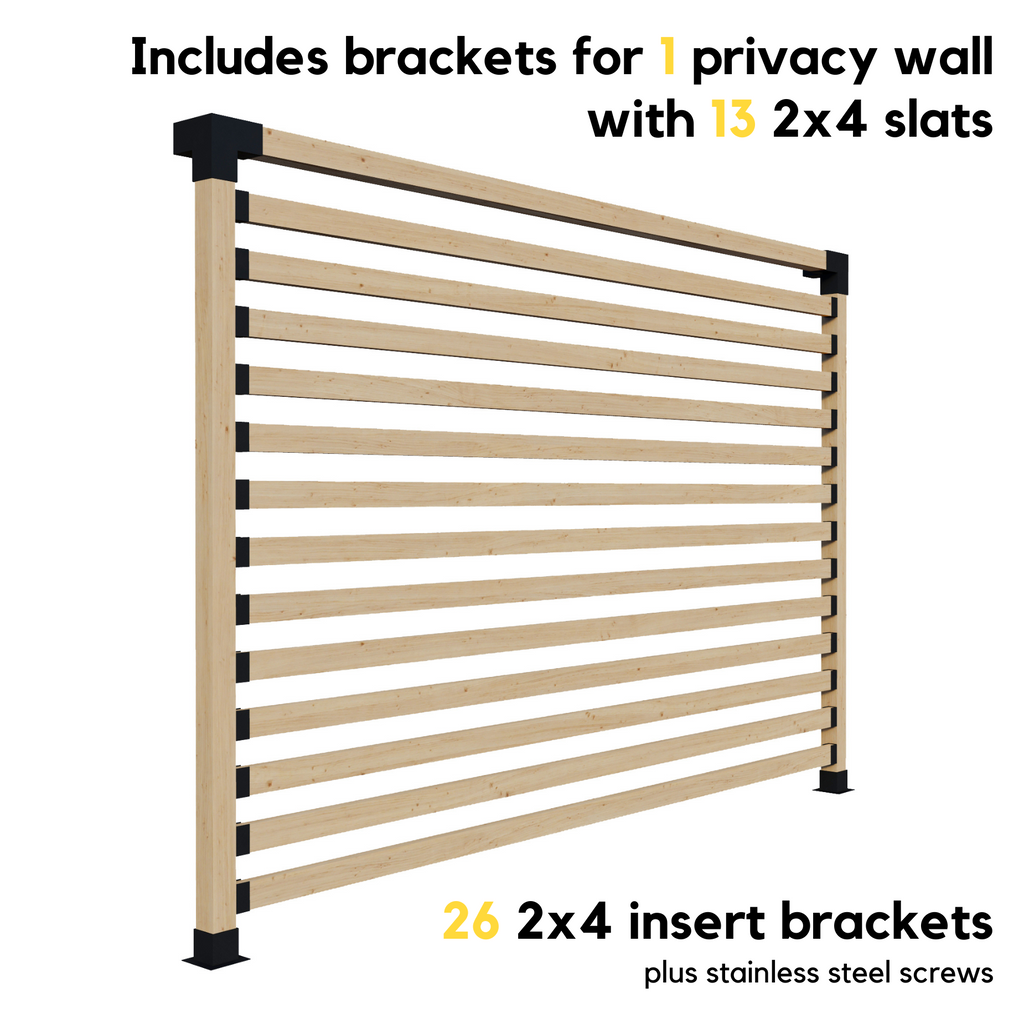

The kit includes 14 2x4 rafter brackets so you can add 7 traditional roof rafters to your pergola (12' span with close spacing). It also includes 26 2x4 insert brackets so you can add one privacy wall with 13 slats (8' height with close spacing). If desired, you could reduce the number of slats on the privacy wall and use some of the insert brackets to add a side railing or another full/partial privacy wall. You can also purchase additional 2x4 insert brackets here.

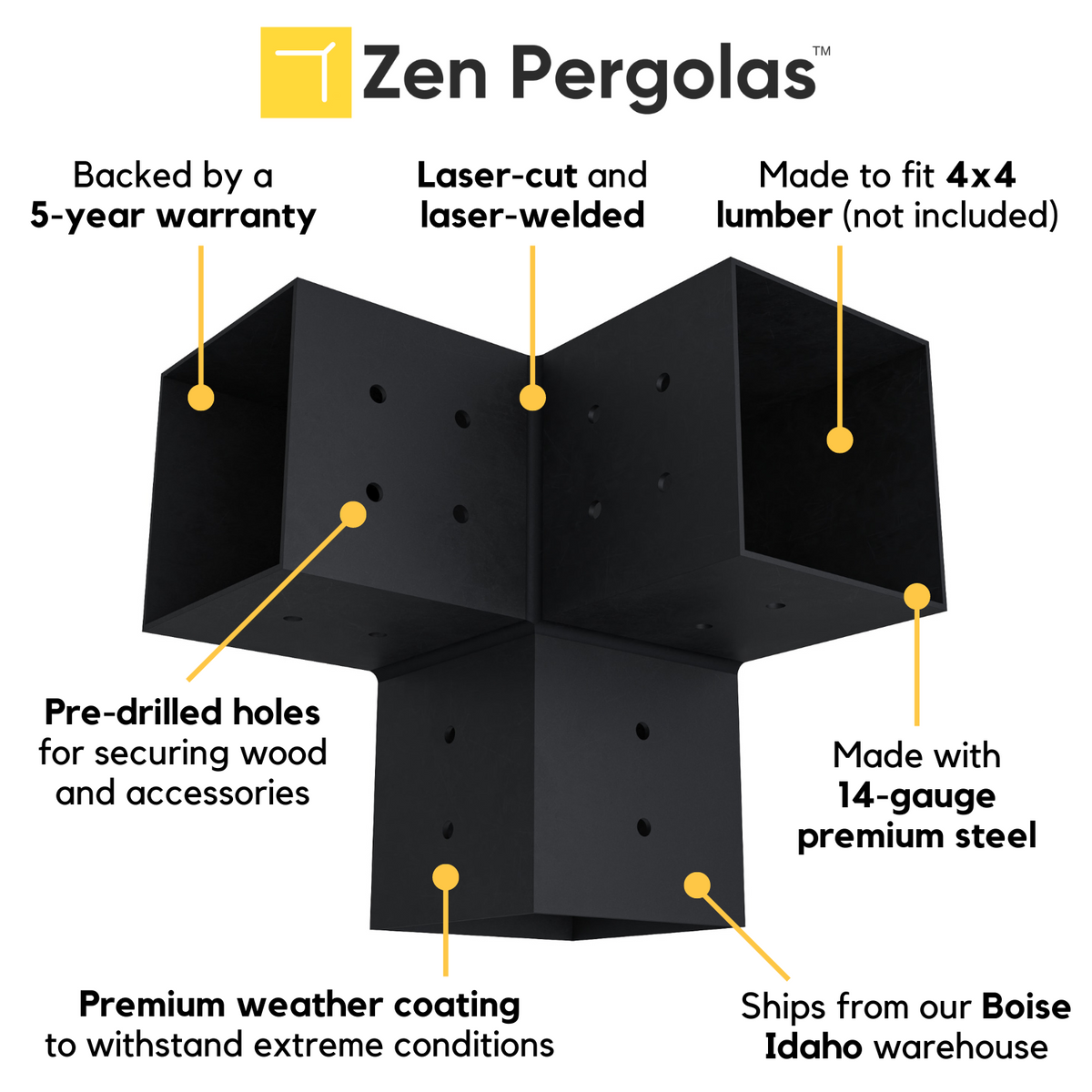

About Our Steel 4x4 Pergola Brackets:

• Made with premium quality steel
• Made of 14-gauge steel (~2.0mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
