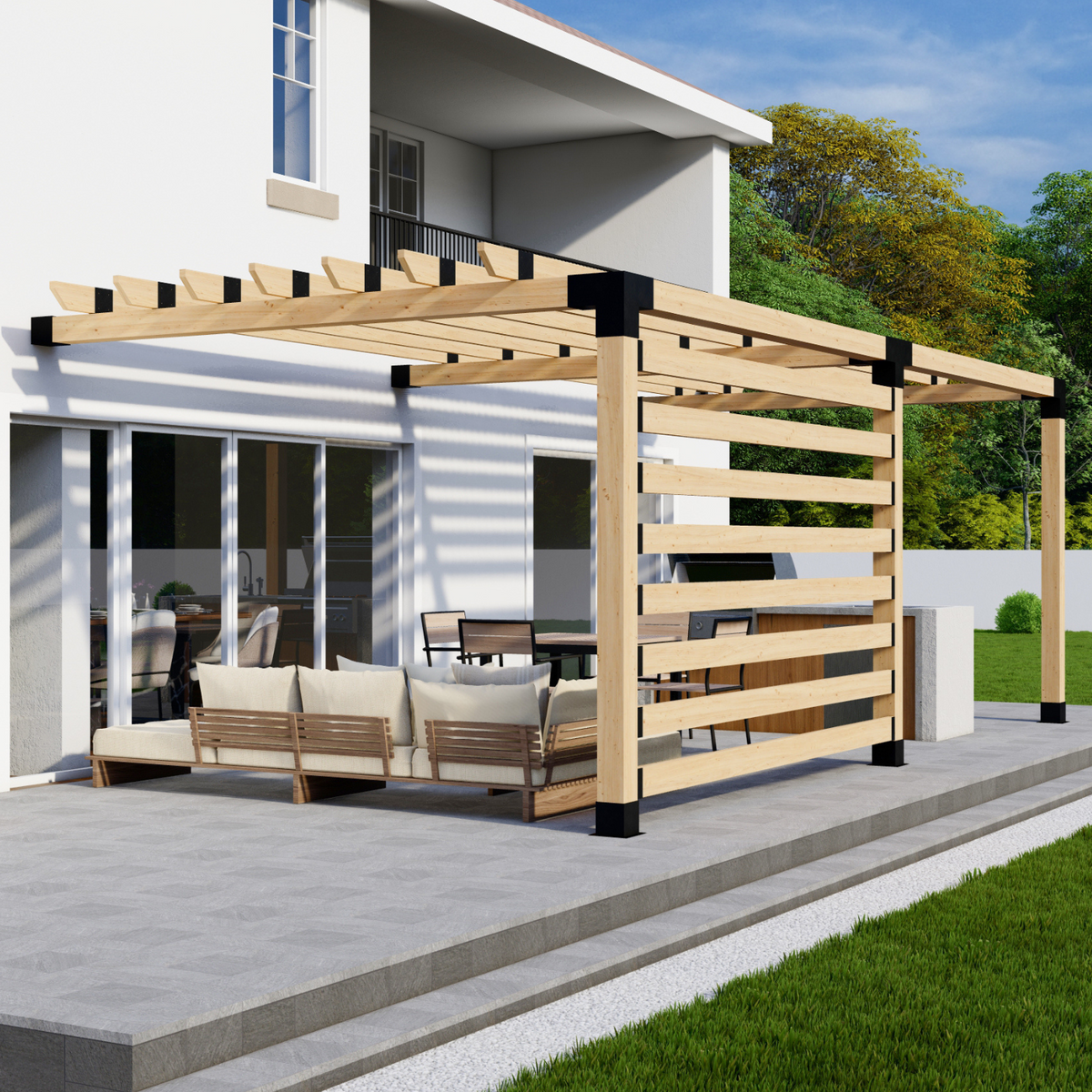

Kit for a Pergola Off Back of House

About this Pergola Kit Configuration:

• Type: Attached to house (see the free-standing version of this kit)
• Bracket size: 6x6 (see the smaller 4x4 version of this kit)
• Dimensions: Up to 24' attached x 12' out from home (see the inverse up to 12' attached x 24' out from home version of this kit)
• Roof style: Traditional w/ rafters atop beams (see this same kit with an inline, square posts or angled slats roof)
• Privacy wall(s): 1 (see this same kit with 0 or 2 privacy walls)
• Roof/wall slat spacing: Medium (see this same kit with far or close spacing)

Want something completely different? Use our easy design tool to create your own pergola configuration.

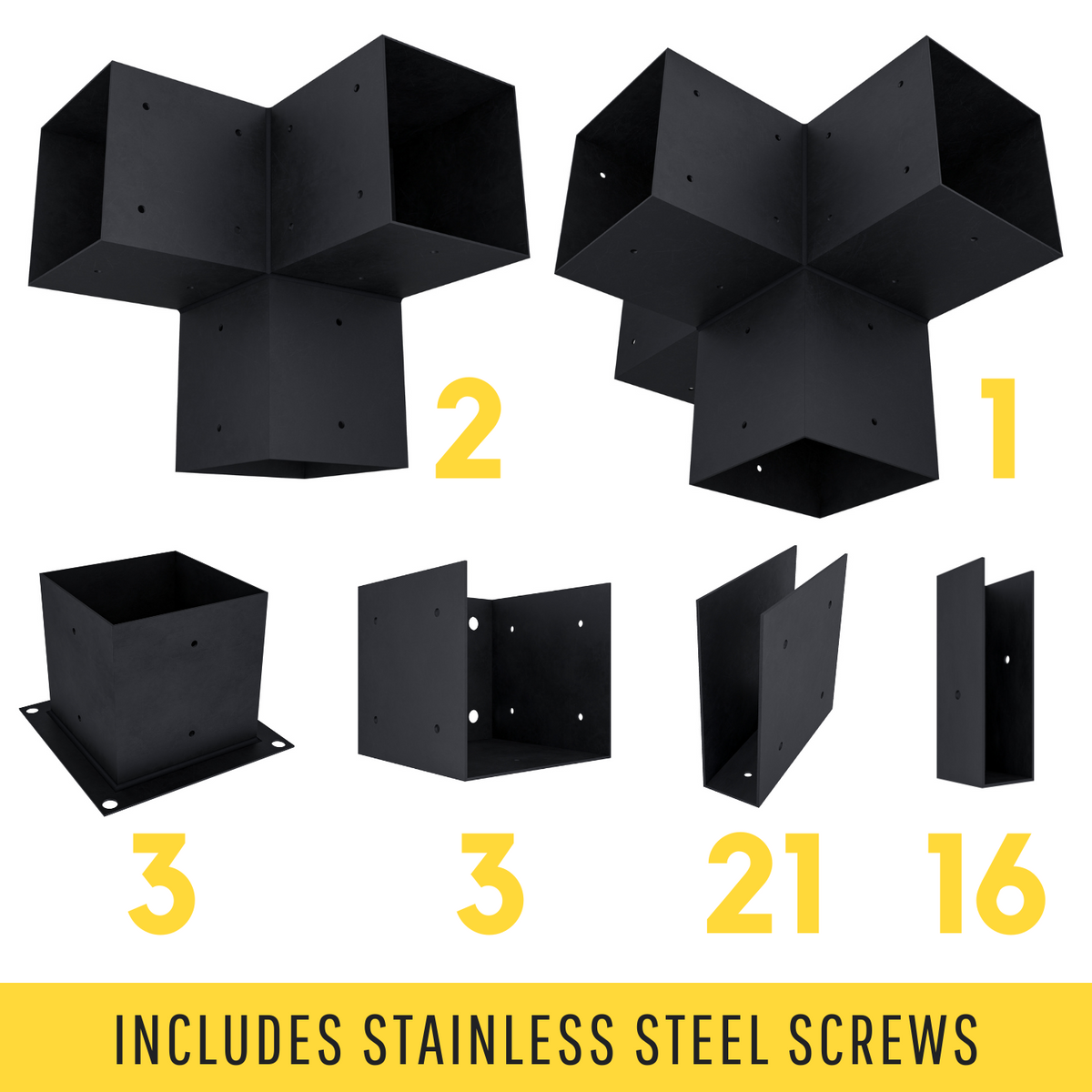

Included in this Pergola off Back of House Kit:

• 3x base brackets (for 6x6 wood)
• 3x wall-mount brackets (for 6x6 wood)
• 2x 3-arm post brackets (for 6x6 wood)
• 1x 4-arm post bracket (for 6x6 wood)
• 21x 2x6 rafter brackets for 7 roof rafters (2x6 wood)
• 16x 2x6 insert brackets for 8 wall slats (2x6 wood)
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

This pergola off back of house kit will accommodate any attached-to-the-house pergola ranging from 13-24 feet (attached to the house) by 4-12 feet (out from the home). The pergola does not need to be the exact dimensions shown in the images on this page.

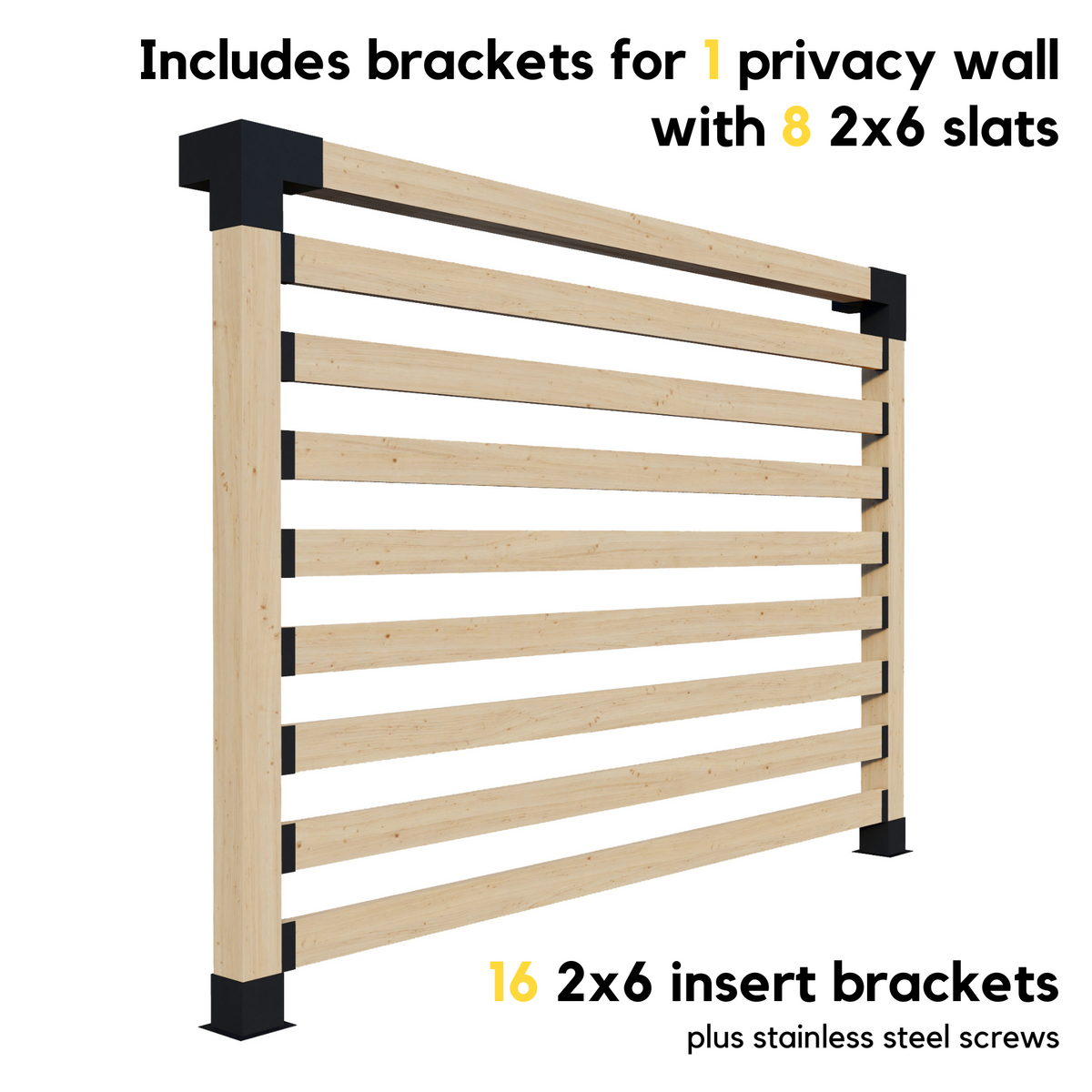

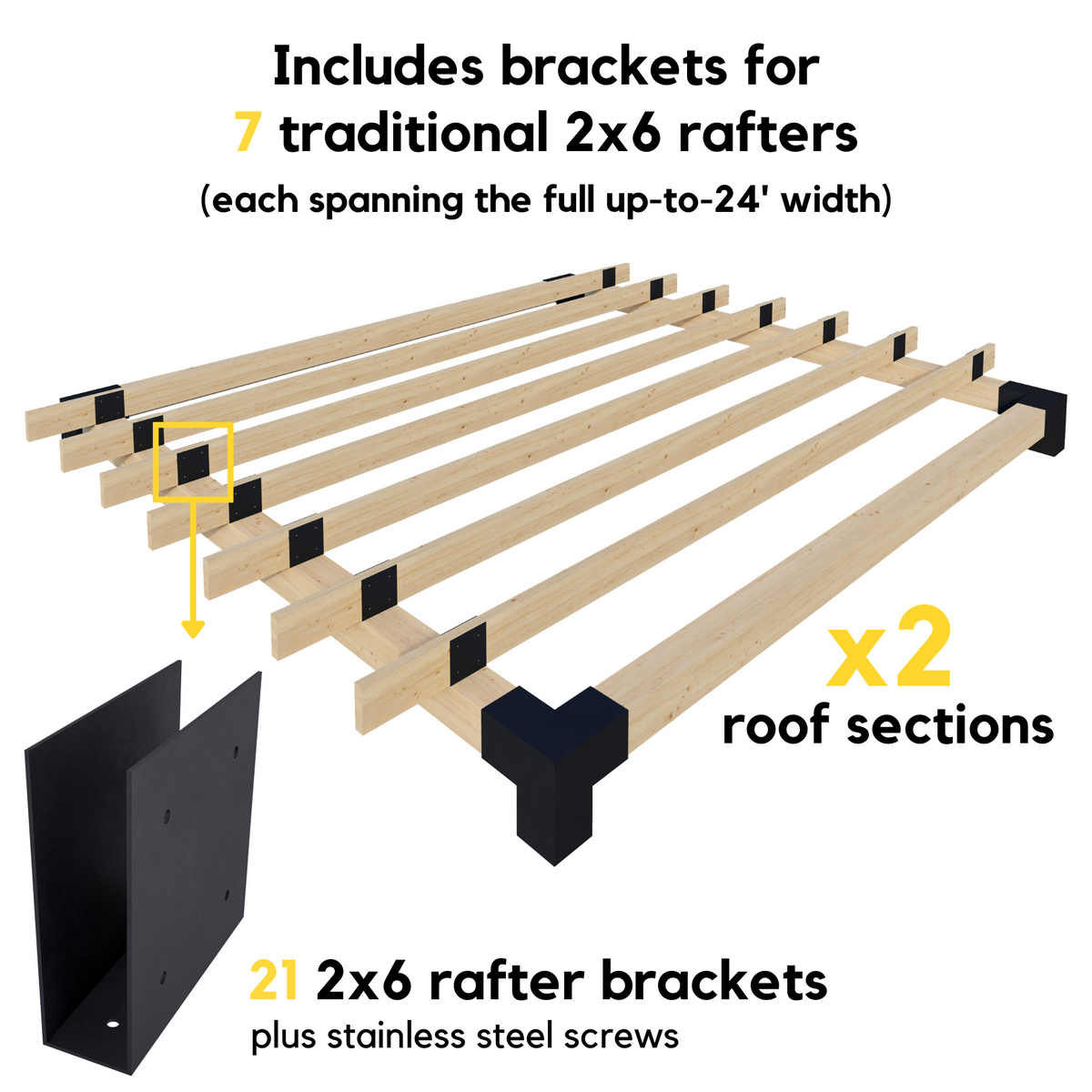

The kit includes 21 2x6 rafter brackets so you can add 7 traditional roof rafters that span both roof sections (12' span with medium spacing). It also includes 16 2x6 insert brackets so you can add one privacy wall with 8 slats (8' height with medium spacing). If desired, you could reduce the number of slats on the privacy wall and use some of the insert brackets to add a side railing or another full/partial privacy wall. You can also purchase additional 2x6 insert brackets here.

Want a Smaller 4x4 Frame Instead?

Click here to see this same pre-configured pergola off back of house kit but with smaller 4x4 wood posts and 2x4 roof and wall slats (instead of 6x6 wood posts and 2x6 roof and wall slats).

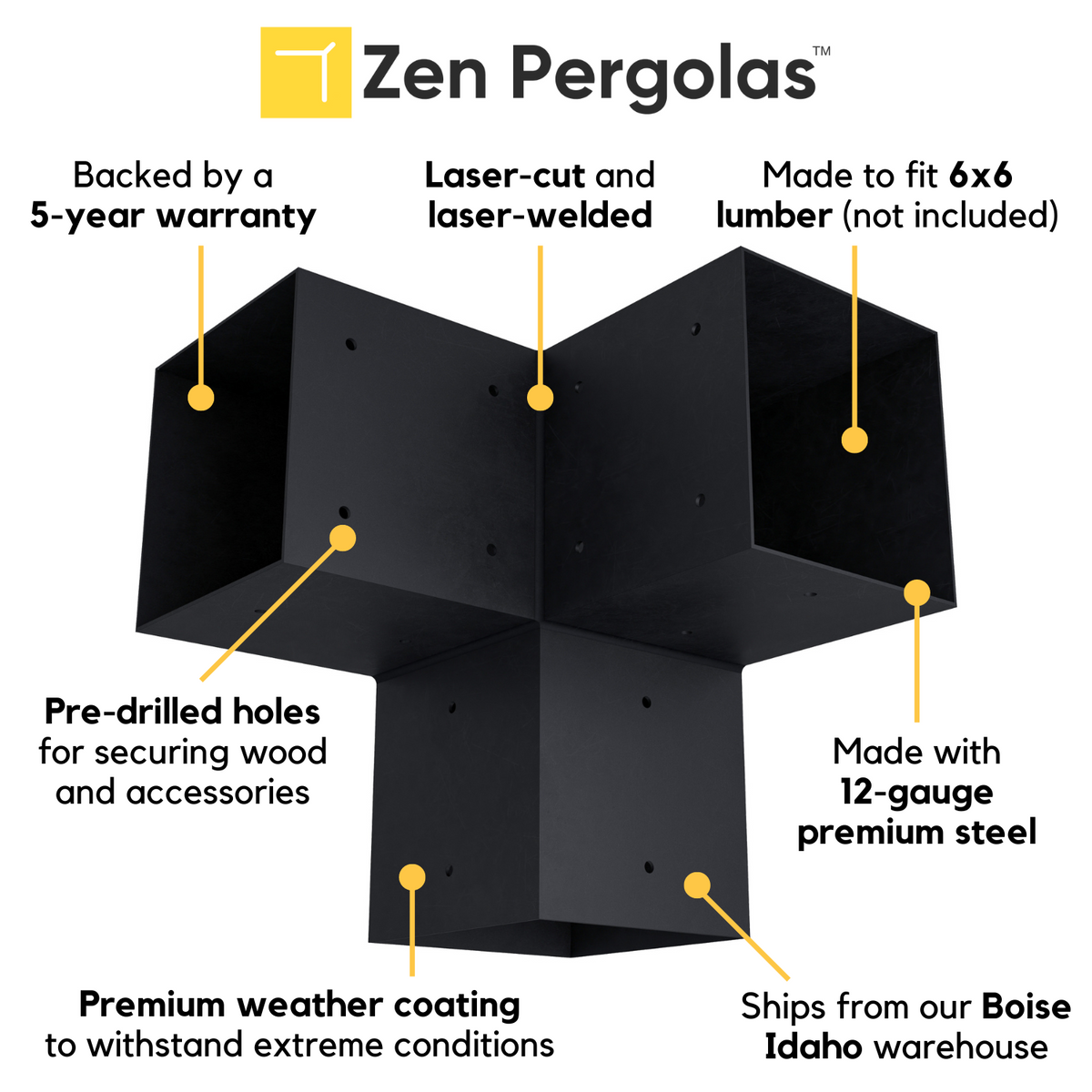

About Our Steel 6x6 Pergola Brackets:

• Made with premium quality steel
• Made of 12-gauge steel (~2.6mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5" x 5.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
