DIY Kit for a Contemporary Pergola With Roof
Sale price
£1,313.00
Regular price £1,646.00
Taxes included.
Shipping calculated at checkout.
About this Pergola Kit Configuration:
- Type: Free-standing (see the attached version of this kit)
- Bracket size: 4x4 (see the larger 6x6 version of this kit)
- Dimensions: Up to 12' wide x 36' deep (see the inverse up to 36' wide x 12' deep version of this kit)
- Roof style: Traditional w/ rafters atop beams (see this same kit with an inline, square posts or angled slats roof)
- Privacy wall(s): None (see this same kit with 1, 2 or 3 privacy walls)
- Rafter spacing: Close (see this same kit with far or medium rafter spacing)
Want something completely different? Use our easy design tool to create your own contemporary pergola with roof configuration.

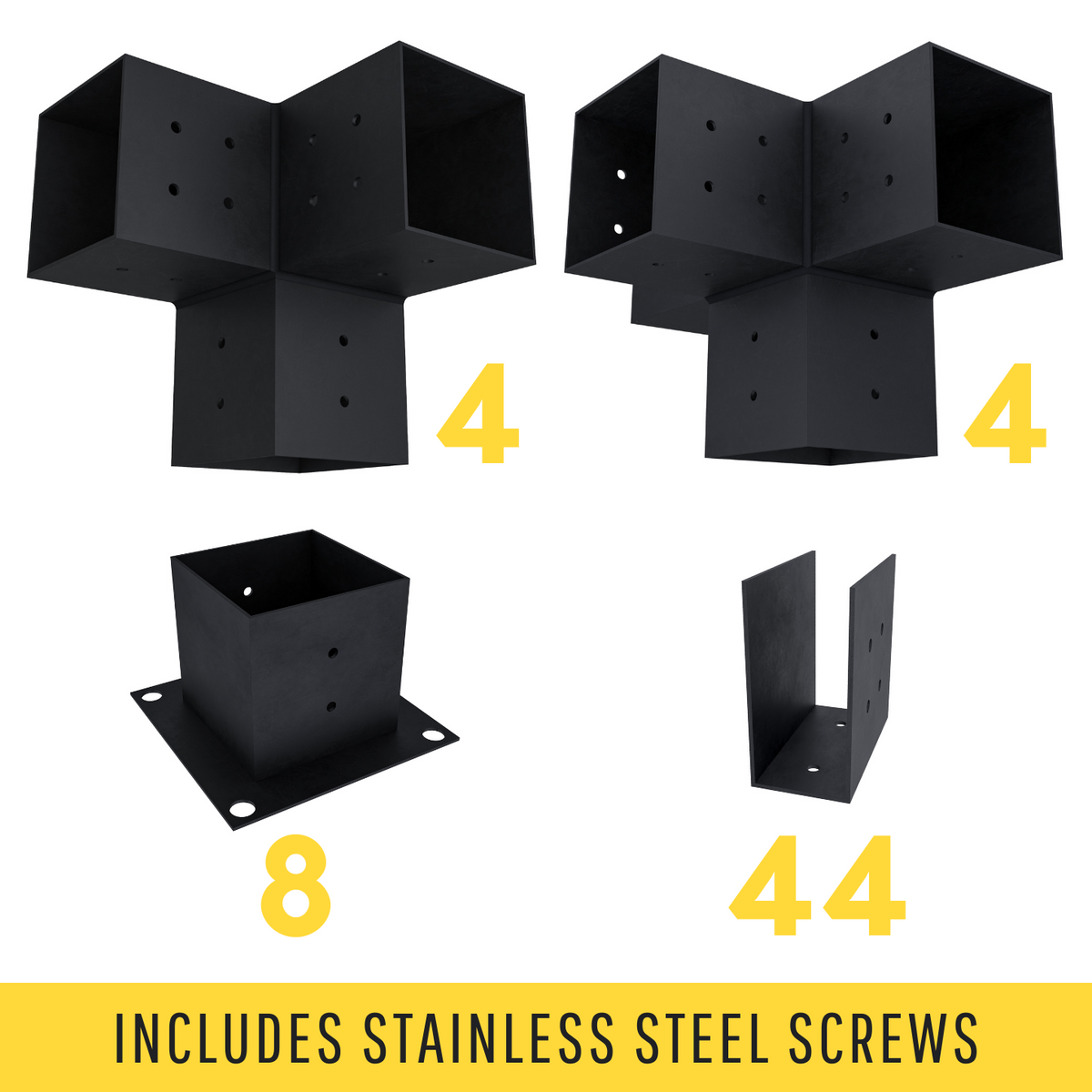

Included in this Free-Standing Contemporary Pergola with Roof Kit:
-
8x base brackets (for 4x4 wood) - 4x 3-arm post brackets (for 4x4 wood)
- 4x 4-arm post brackets (for 4x4 wood)
- 44x 2x4 rafter brackets for 11 roof rafters (2x4 wood)
- Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- NOTE: Wood (lumber) and anchoring hardware for securing the base brackets to a solid foundation are NOT included and will need to be purchased locally
This contemporary pergola with roof kit will accommodate any free-standing pergola with roof ranging from 25-36 feet by 4-12 feet. The pergola does not need to be the exact dimensions shown in the images on this page.

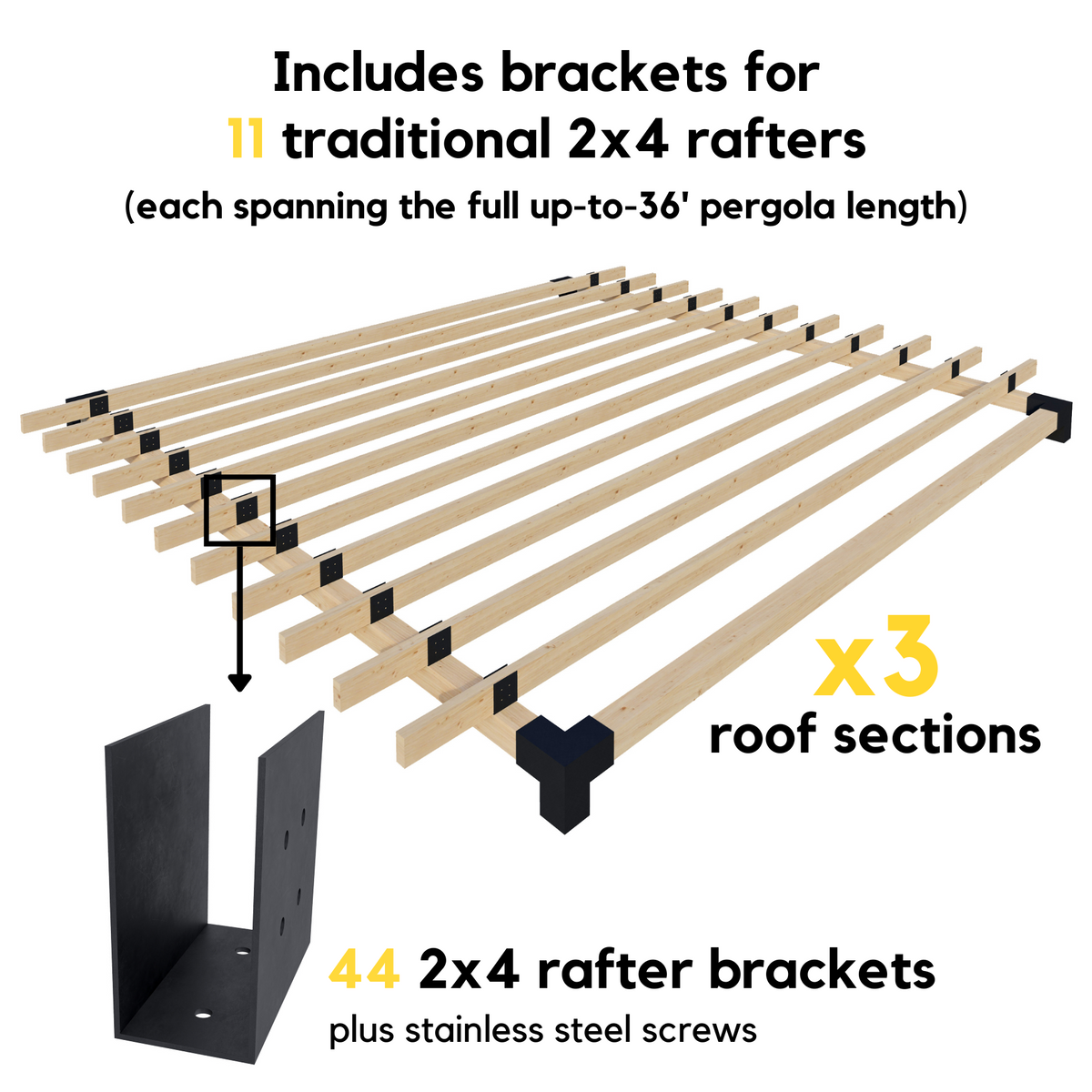

The kit includes 44 2x4 rafter brackets so you can add 11 traditional roof rafters that cover all 3 roof sections and run longways (12' width with close spacing). These rafters sit atop the beams and can be installed with or without overhangs. If you would like to space the rafters closer together, you can purchase additional 2x4 rafter brackets here. If you're wanting this same pre-configured pergola except with the roof rafters running the other direction (i.e. rotated 90 degrees so each roof section has 11 separate rafters), click here.

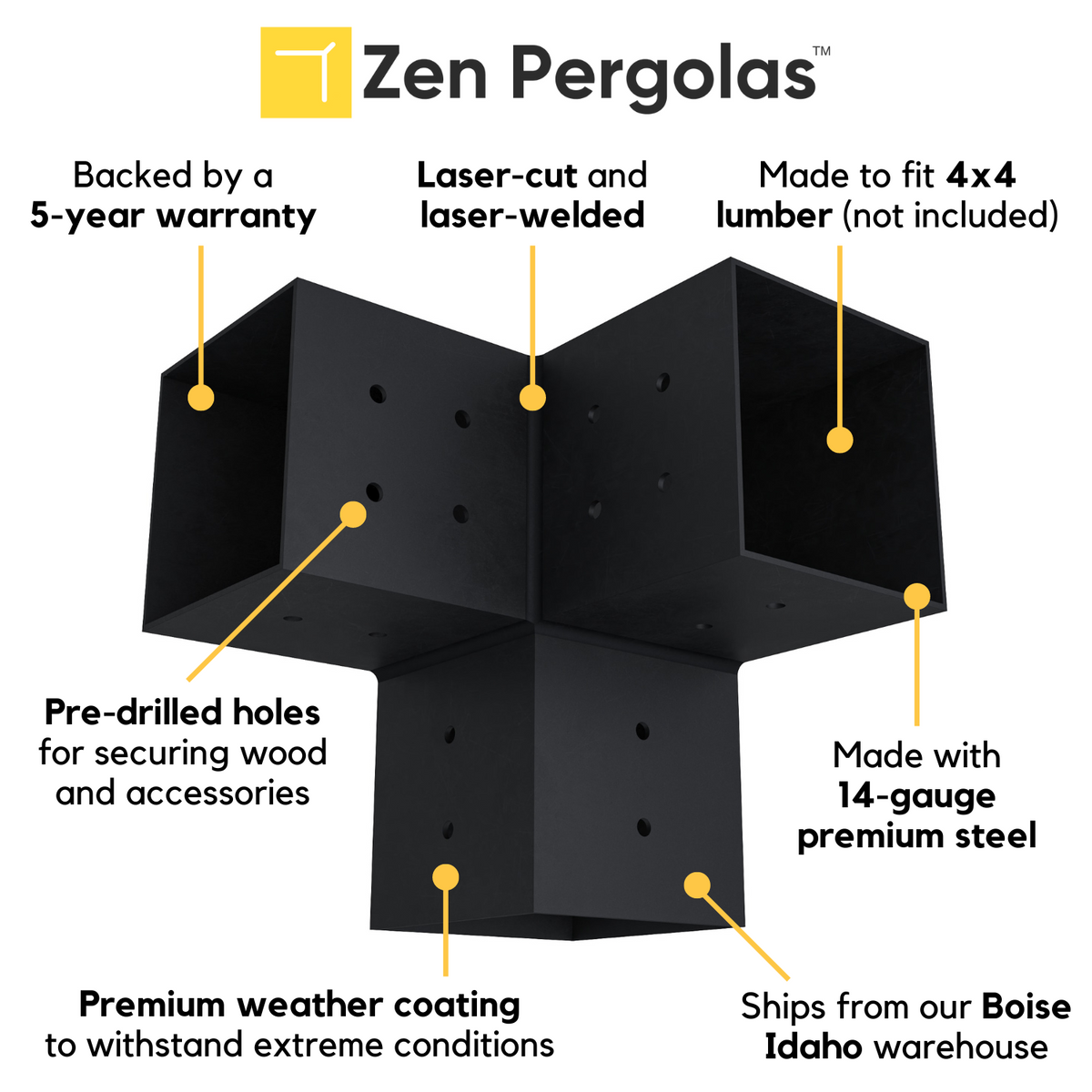

About Our Steel 4x4 Pergola Brackets:
- Made with premium quality steel
- Made of 14-gauge steel (~2.0mm thick)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to brackets
- Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- Reduces your pergola build time by as much as 75%
- Backed by our 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
