Kit for Building a Pergola Next to House

About this Pergola Kit Configuration:

• Type: Attached to house (see the free-standing version of this kit)
• Bracket size: 6x6 (see the smaller 4x4 version of this kit)
• Dimensions: Up to 12' attached x 24' out from home (see the inverse up to 24' attached x 12' out from home version of this kit)
• Roof style: Square posts (see this same kit with an inline, traditional, or angled slats roof)
• Privacy wall(s): 1 (see this same kit with 0 or 2 privacy walls)
• Roof/wall slat spacing: Medium (see this same kit with far or close spacing)

Want something completely different? Use our easy design tool to create your own pergola configuration.

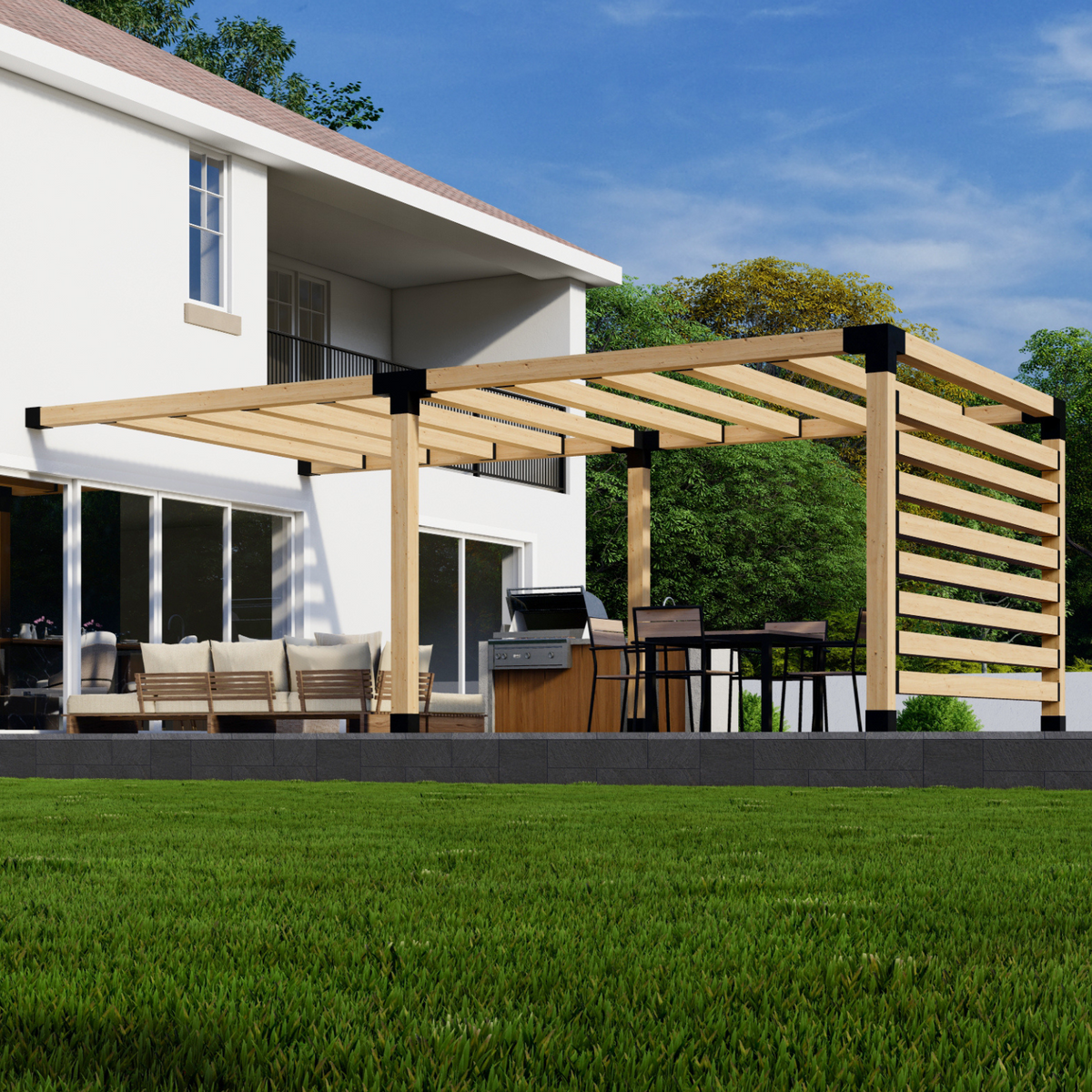

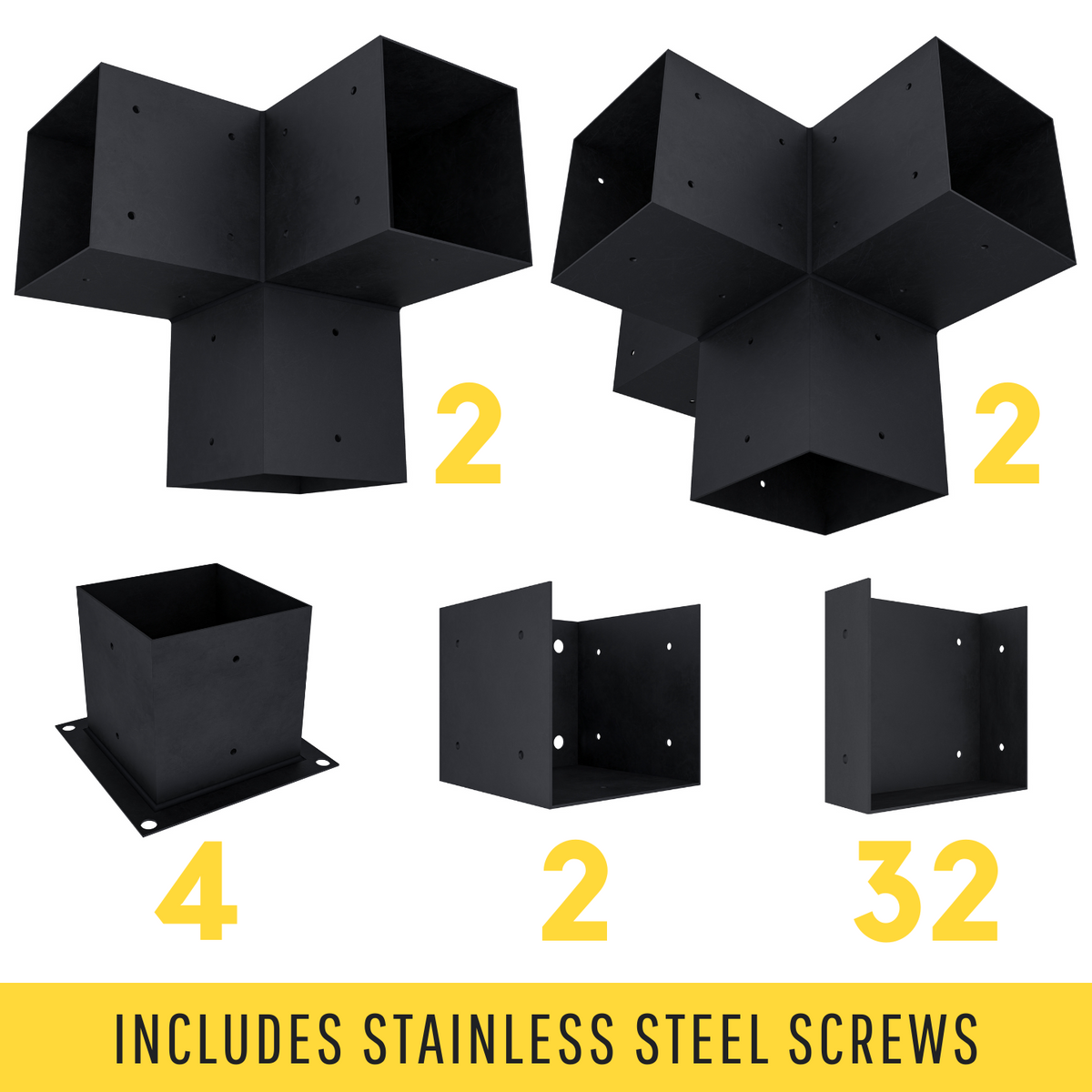

Included in this Modern Pergola Attached to House Kit:

• 4x base brackets (for 6x6 wood)
• 2x wall-mount brackets (for 6x6 wood)
• 2x 3-arm post brackets (for 6x6 wood)
• 2x 4-arm post brackets (for 6x6 wood)
• 32x 6x6 insert brackets for 16 roof/wall slats (6x6 wood)
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

This modern pergola attached to house kit will accommodate any wall-mounted pergola ranging from 4-12 feet wide (attached to the house) by 13-24 feet deep (out from the home). Click here to see a pergola kit with the dimensions flip-flopped.

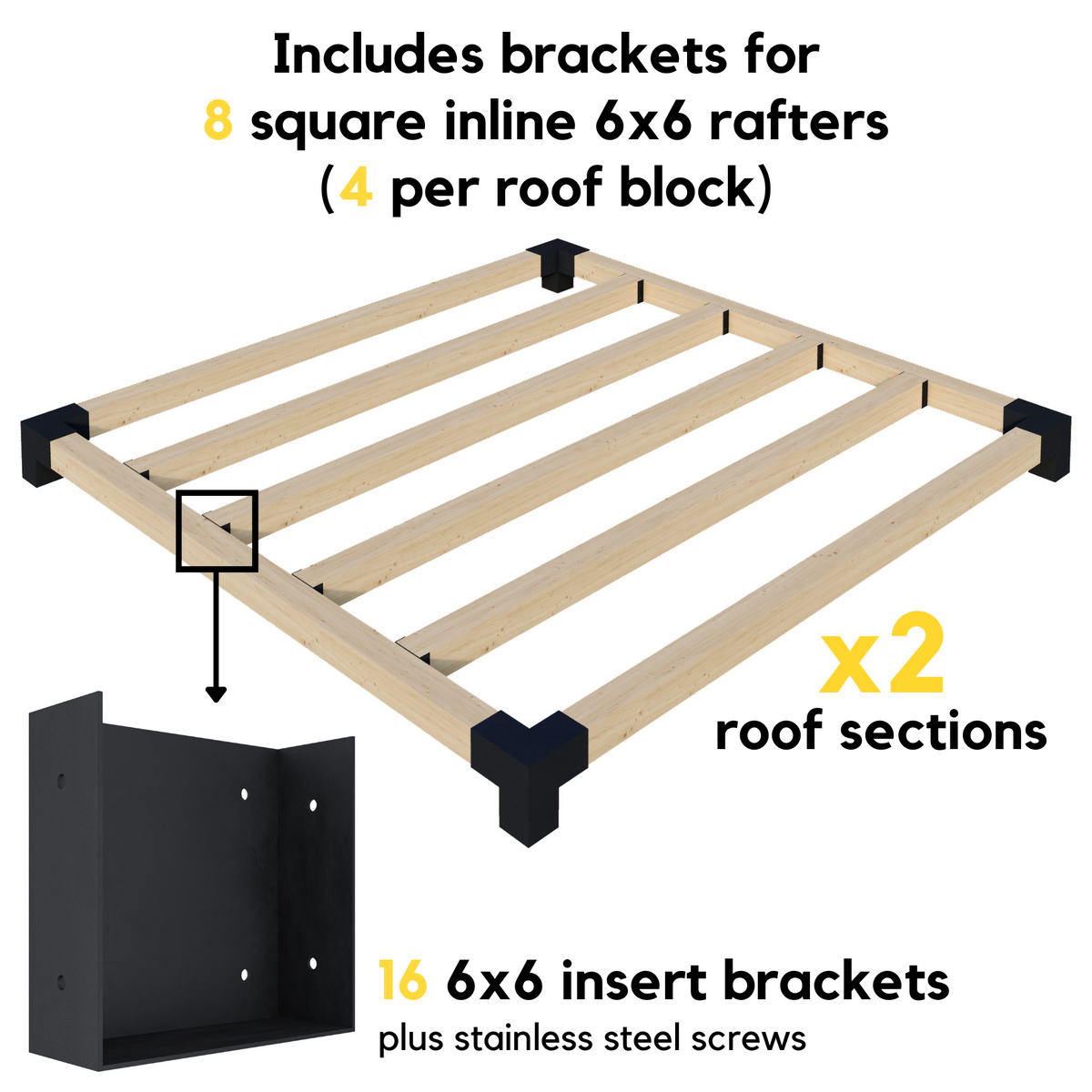

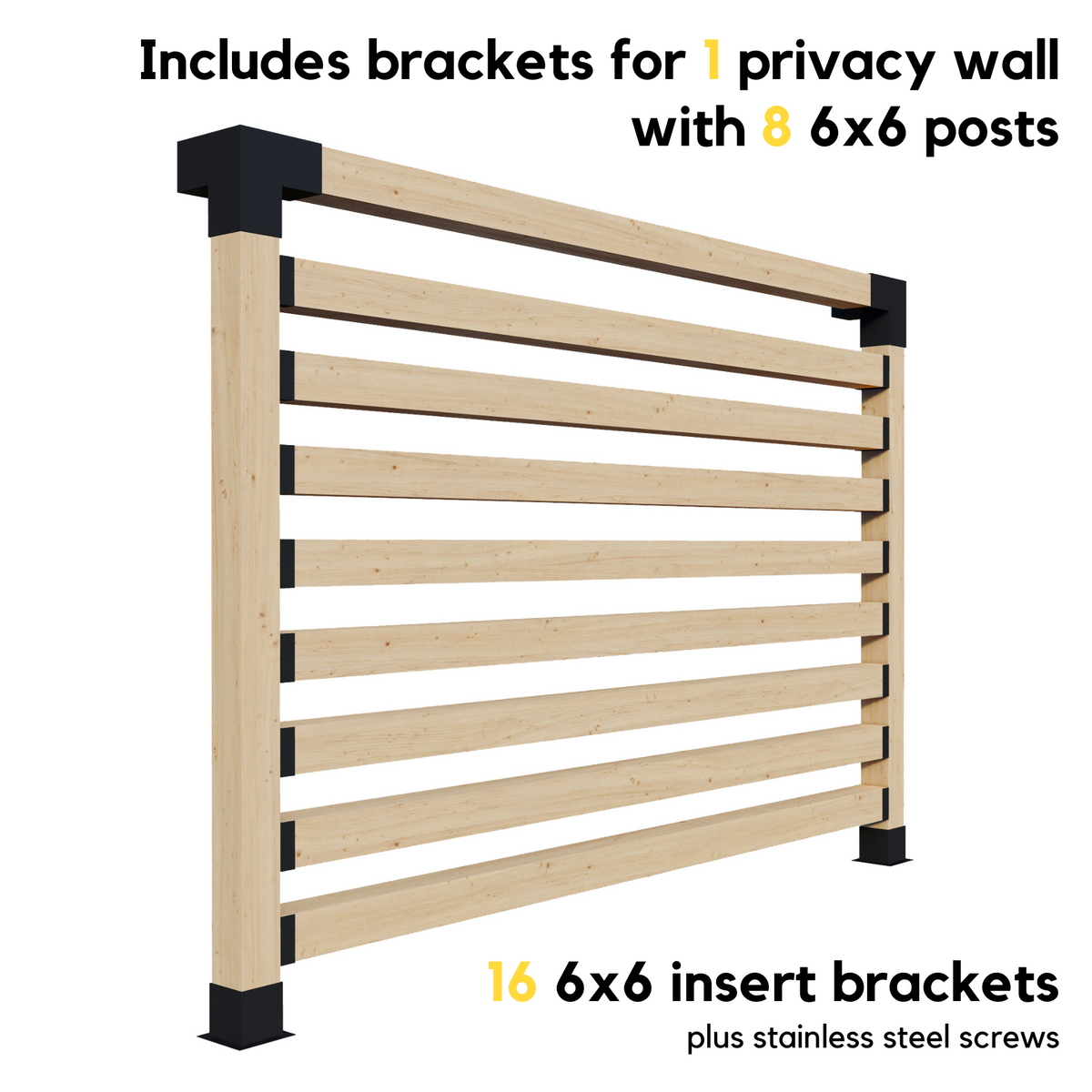

The kit includes a total of 32 6x6 insert brackets. While the intent is that 16 of these brackets be used for adding 4 roof rafters to each of the 2 roof sections (12' span each with medium rafter spacing) and the remaining 16 be used for one privacy wall with 8 slats (8' height with medium slat spacing), you can use the brackets any way you'd like (i.e. adding another privacy wall or half/partial wall, adding a side railing, increasing the number of slats in a roof/wall section, etc.). You can also purchase additional 6x6 insert brackets here.

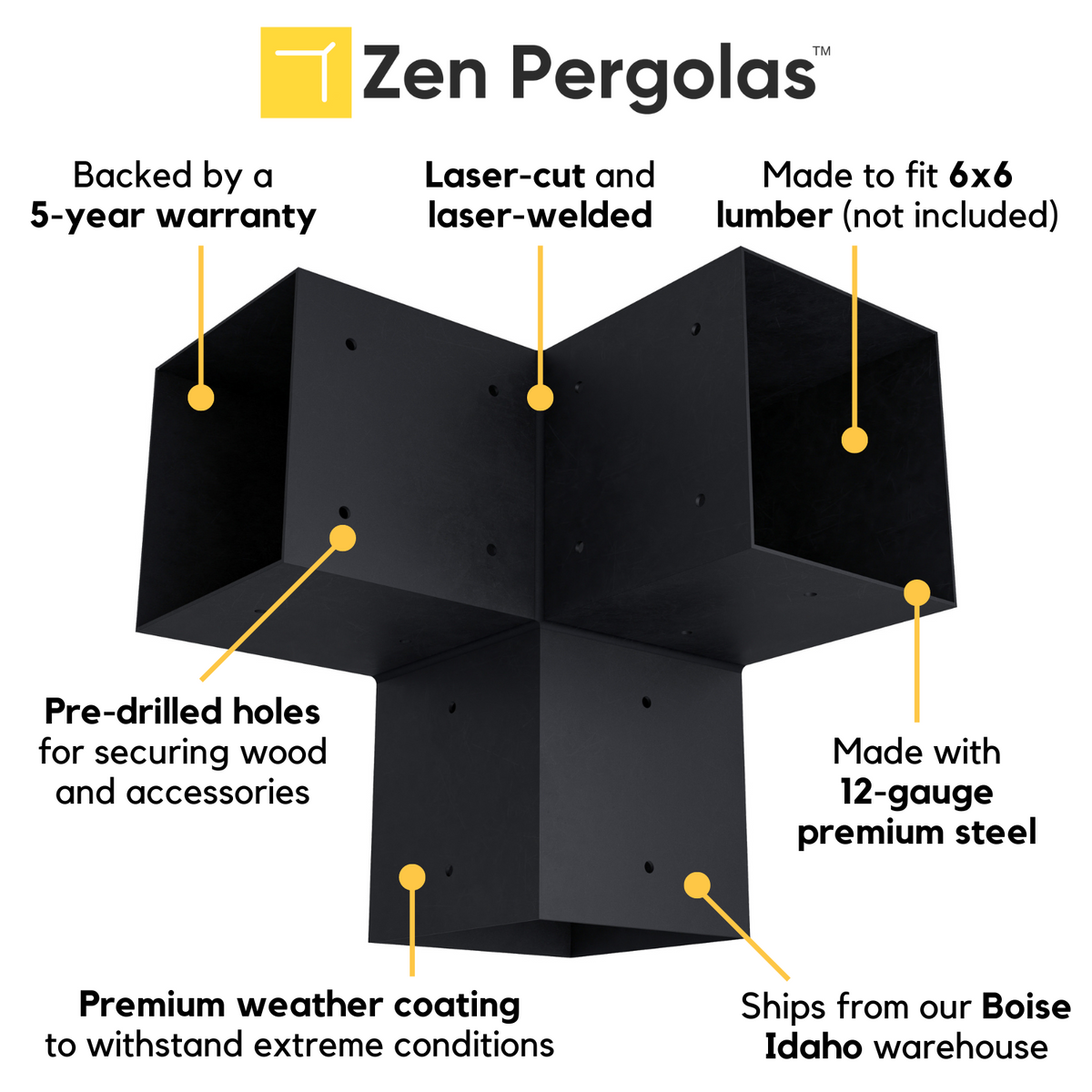

About Our Steel 6x6 Pergola Brackets:

• Made with premium quality steel
• Made of 12-gauge steel (~2.6mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5" x 5.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
