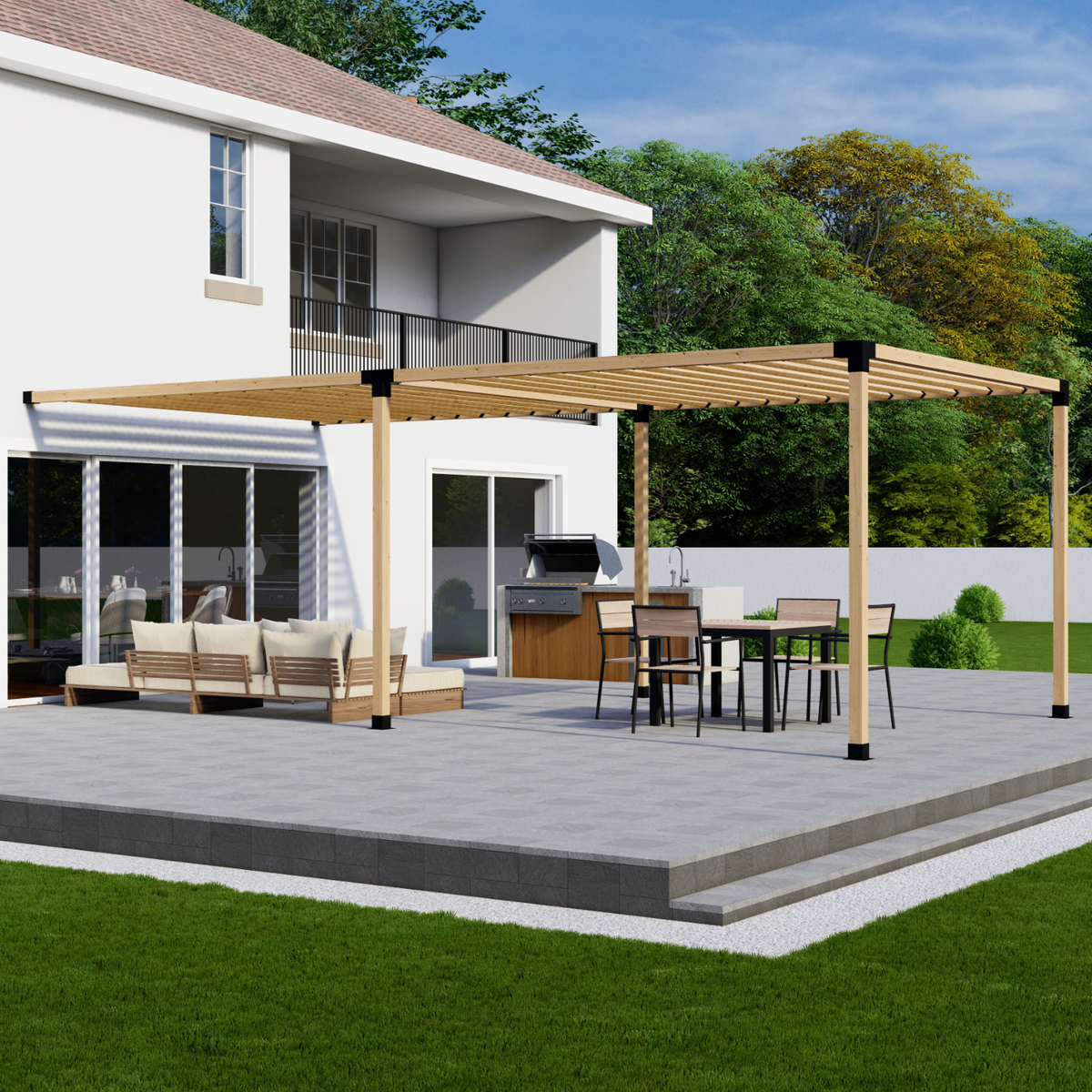

Kit for Building a Pergola Connected to House

About this Pergola Kit Configuration:

• Type: Attached to house (see the free-standing version of this kit)
• Bracket size: 4x4 (see the larger 6x6 version of this kit)
• Dimensions: Up to 12' attached x 24' out from home (see the inverse up to 24' attached x 12' out from home version of this kit)
• Roof style: Angled slats (see this same kit with an inline, traditional, or square posts roof)

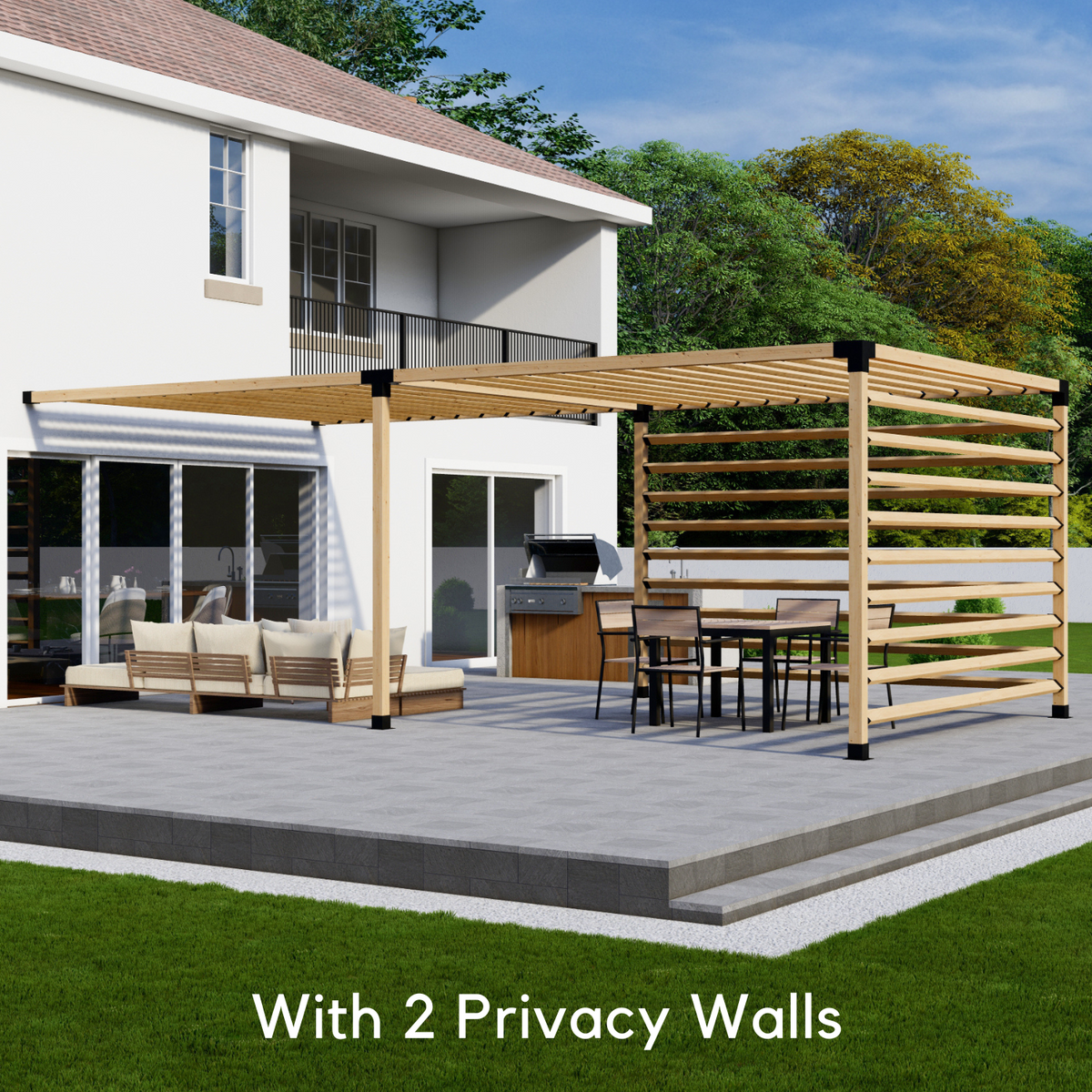

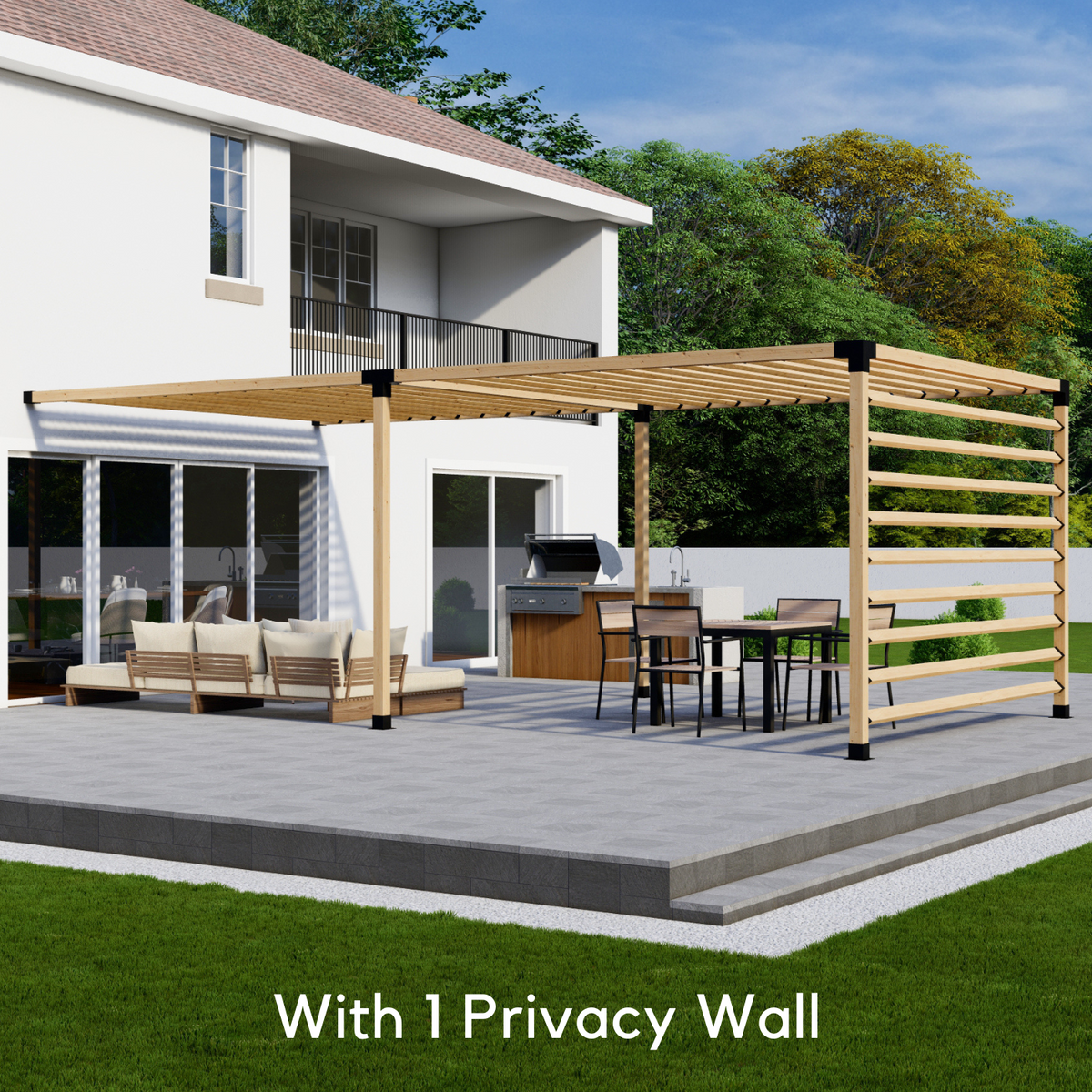

• Privacy wall(s): None (see this same kit with 1 or 2 privacy walls)
• Rafter spacing: Far (see this same kit with medium or close rafter spacing)

Want something completely different? Use our easy design tool to create your own pergola configuration.

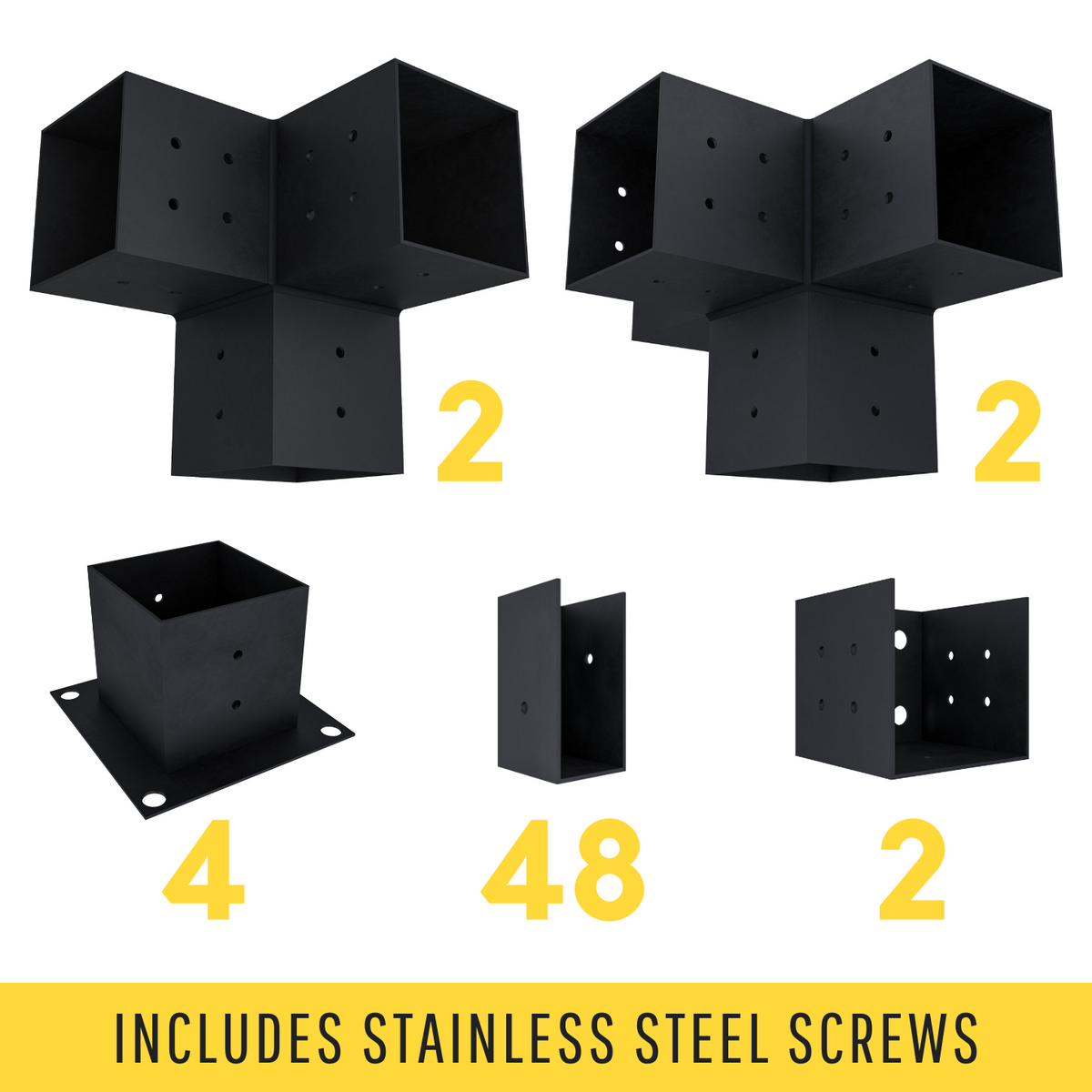

Included in this Pergola Connected to House Kit:

• 4x base brackets (for 4x4 wood)
• 2x wall-mount brackets (for 4x4 wood)
• 2x 3-arm post brackets (for 4x4 wood)
• 2x 4-arm post brackets (for 4x4 wood)
• 48x 2x4 insert brackets for 24 roof/wall slats (2x4 wood)
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

This pergola connected to house kit will accommodate any wall-mounted pergola ranging from 4-12 feet wide (attached to the house) by 13-24 feet deep (out from the home). Click here to see a pergola kit with the dimensions flip-flopped.

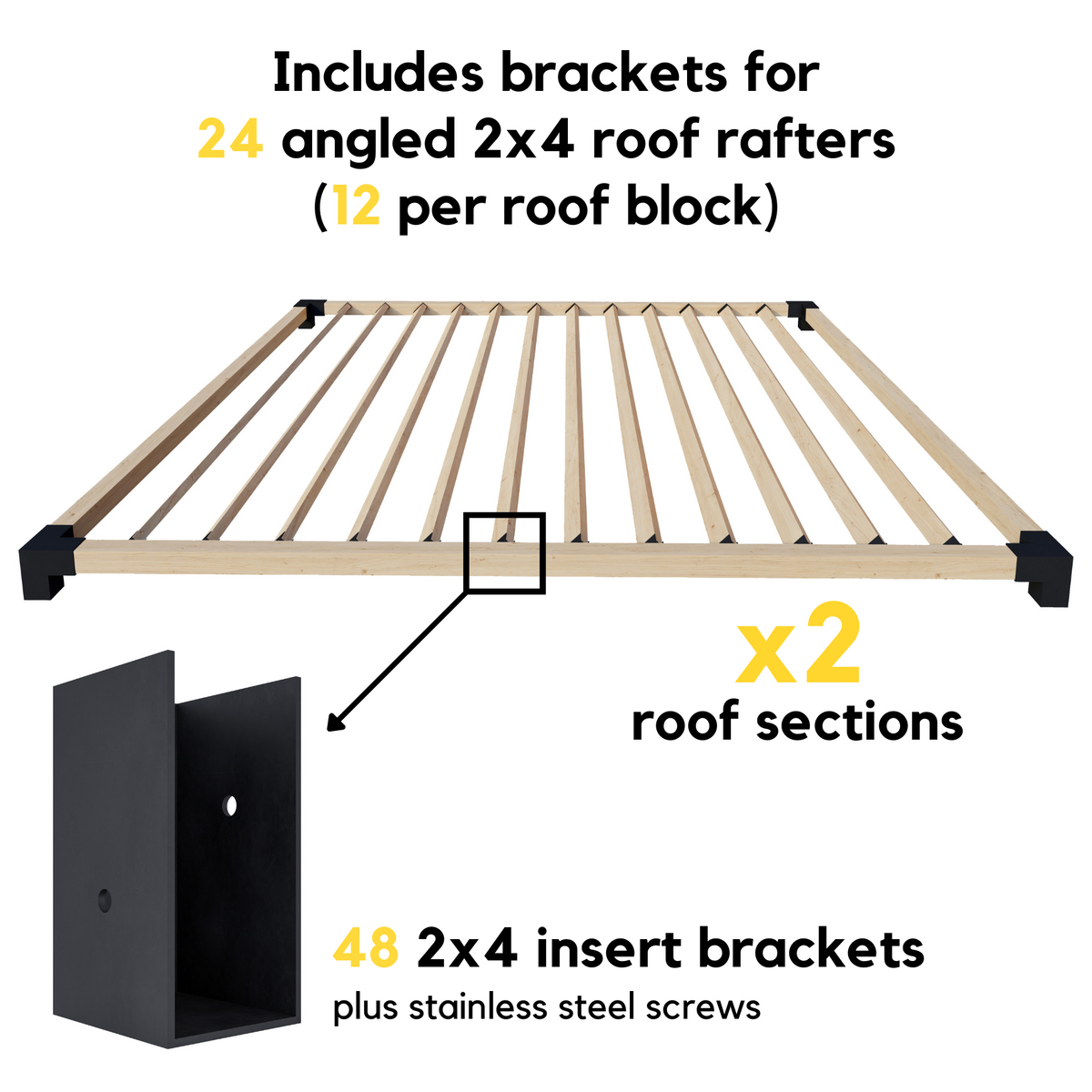

The kit includes 48 2x4 insert brackets. While the intent is that all 48 of these brackets will be used to insert 12 angled roof slats over each of the 2 roof sections (12' span each with far slat spacing), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, increasing the number of slats in a roof/wall section, etc.). You can also purchase additional 2x4 insert brackets here.

Want a Larger 6x6 Frame?

Click here to see this same pre-configured pergola connected to house kit but with larger 6x6 wood posts and angled 2x6 roof slats (instead of 4x4 wood posts and angled 2x4 roof slats).

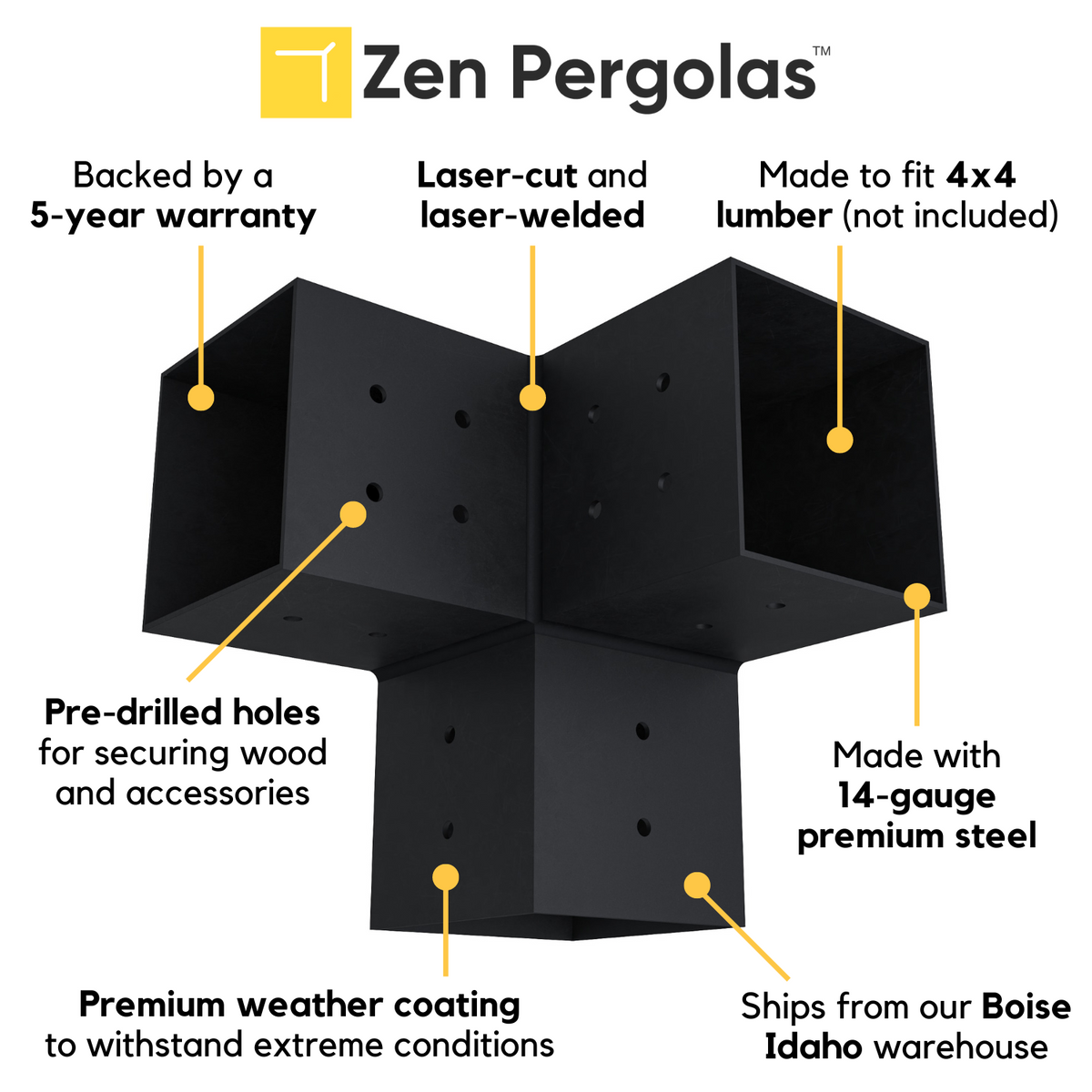

About Our Steel 4x4 Pergola Brackets:

• Made with premium quality steel
• Made of 14-gauge steel (~2.0mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
