Bracket Kit for a Wooden Pergola for Patio

About this Pergola Kit Configuration:

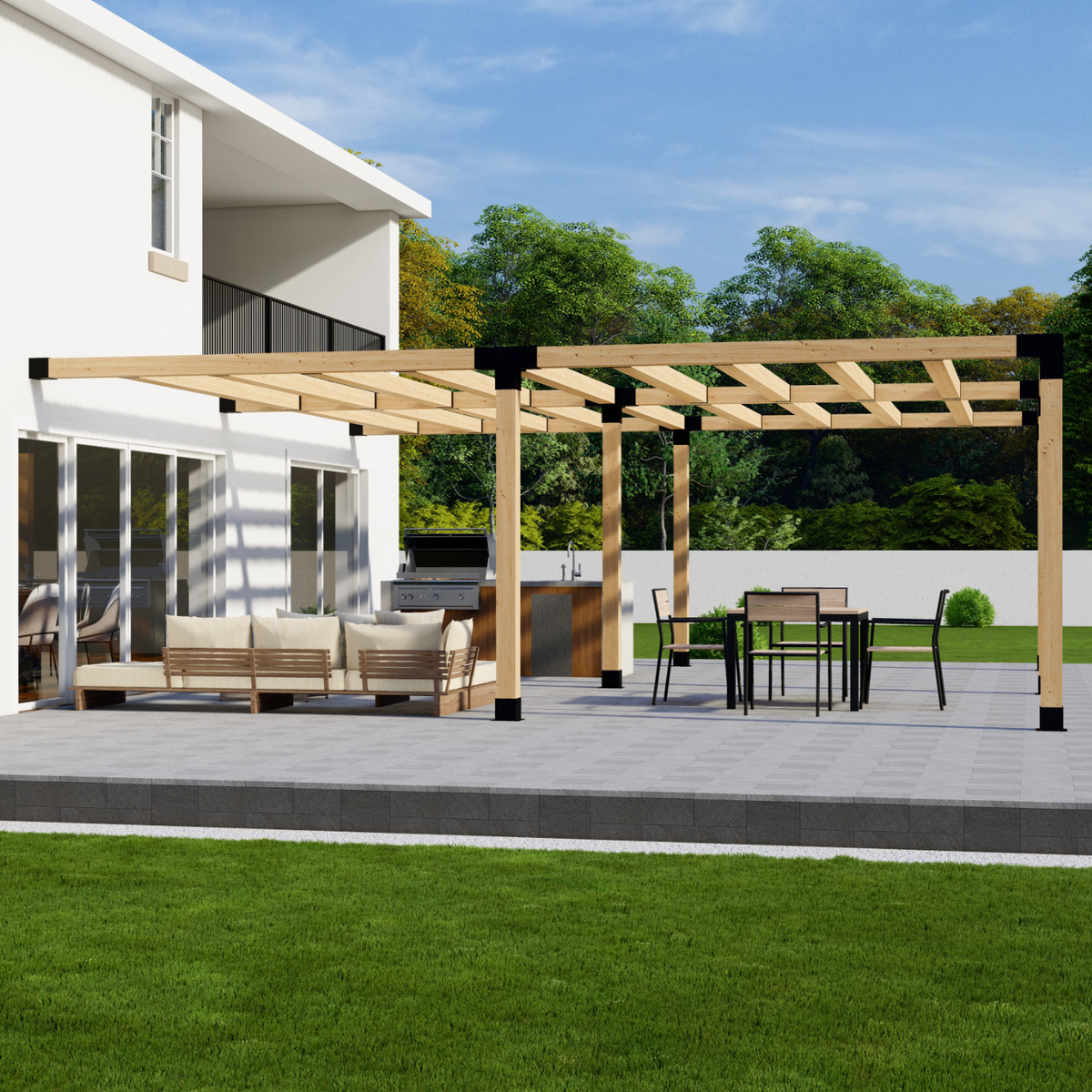

• Type: Attached to house (see the free-standing version of this kit)
• Bracket size: 6x6 (see the smaller 4x4 version of this kit)
• Roof style: Square posts (see this same kit with an inline, traditional, or angled slats roof)

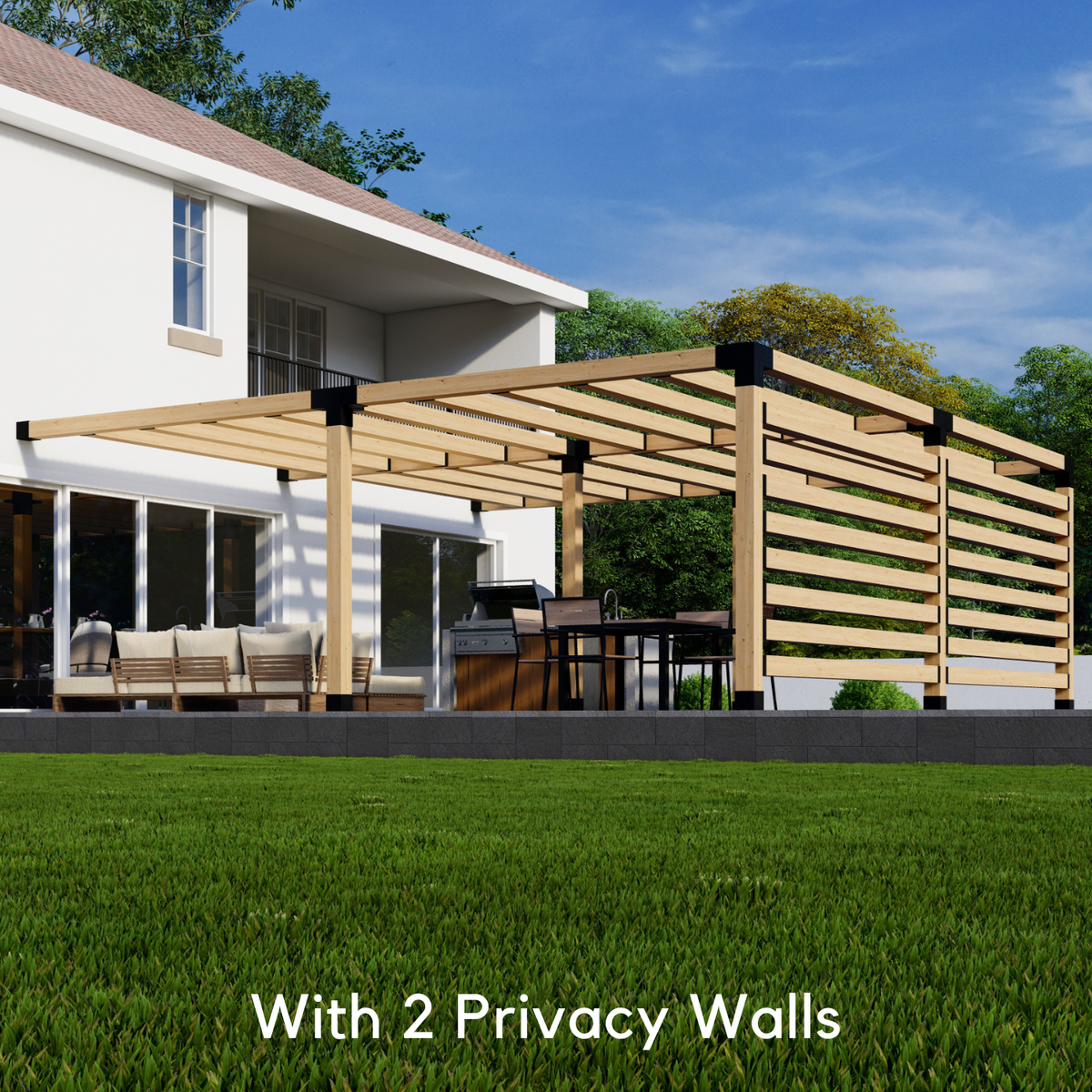

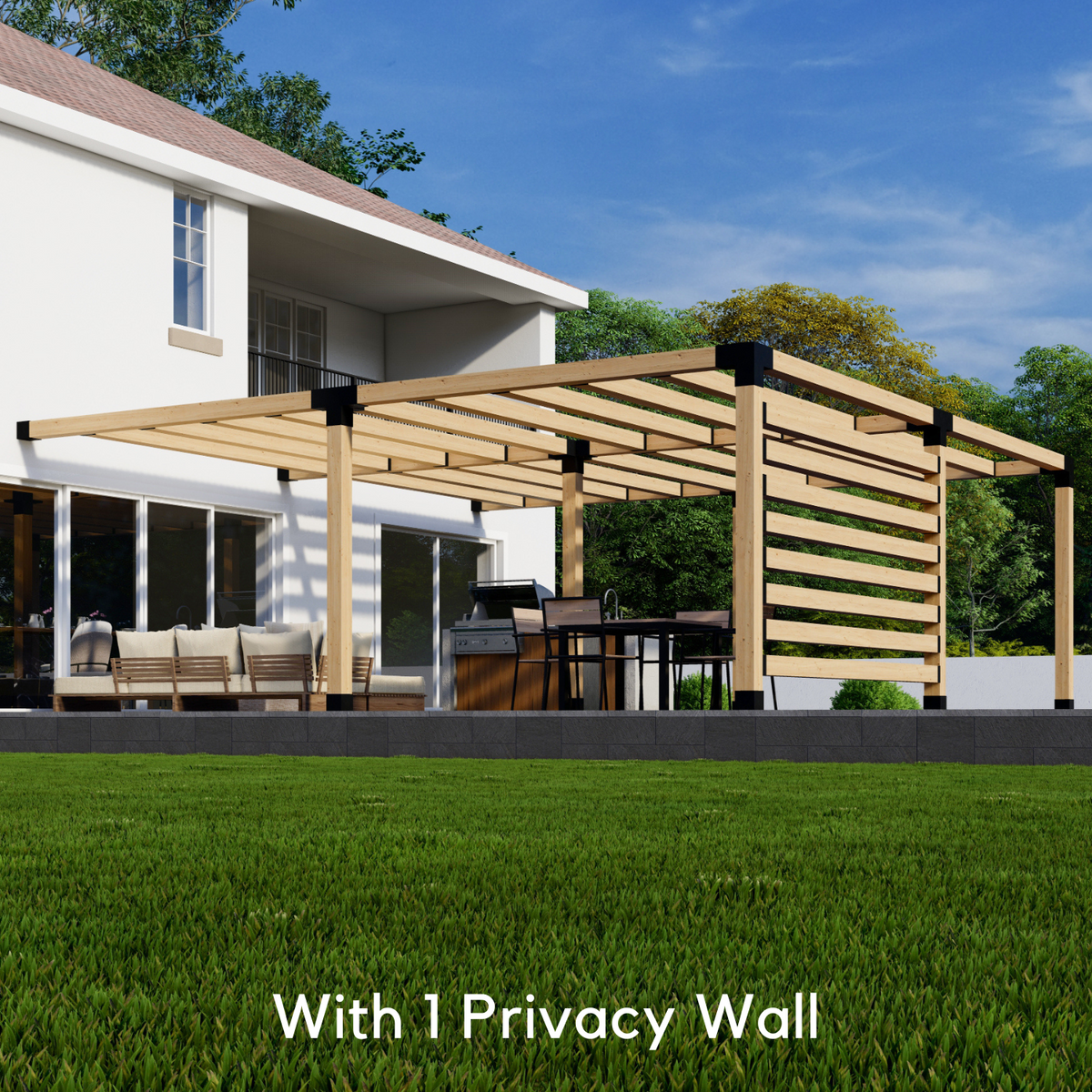

• Privacy wall(s): None (see this same kit with 1 or 2 privacy walls)
• Rafter spacing: Medium (see this same kit with far or close rafter spacing)

Want something completely different? Use our easy design tool to create your own pergola configuration.

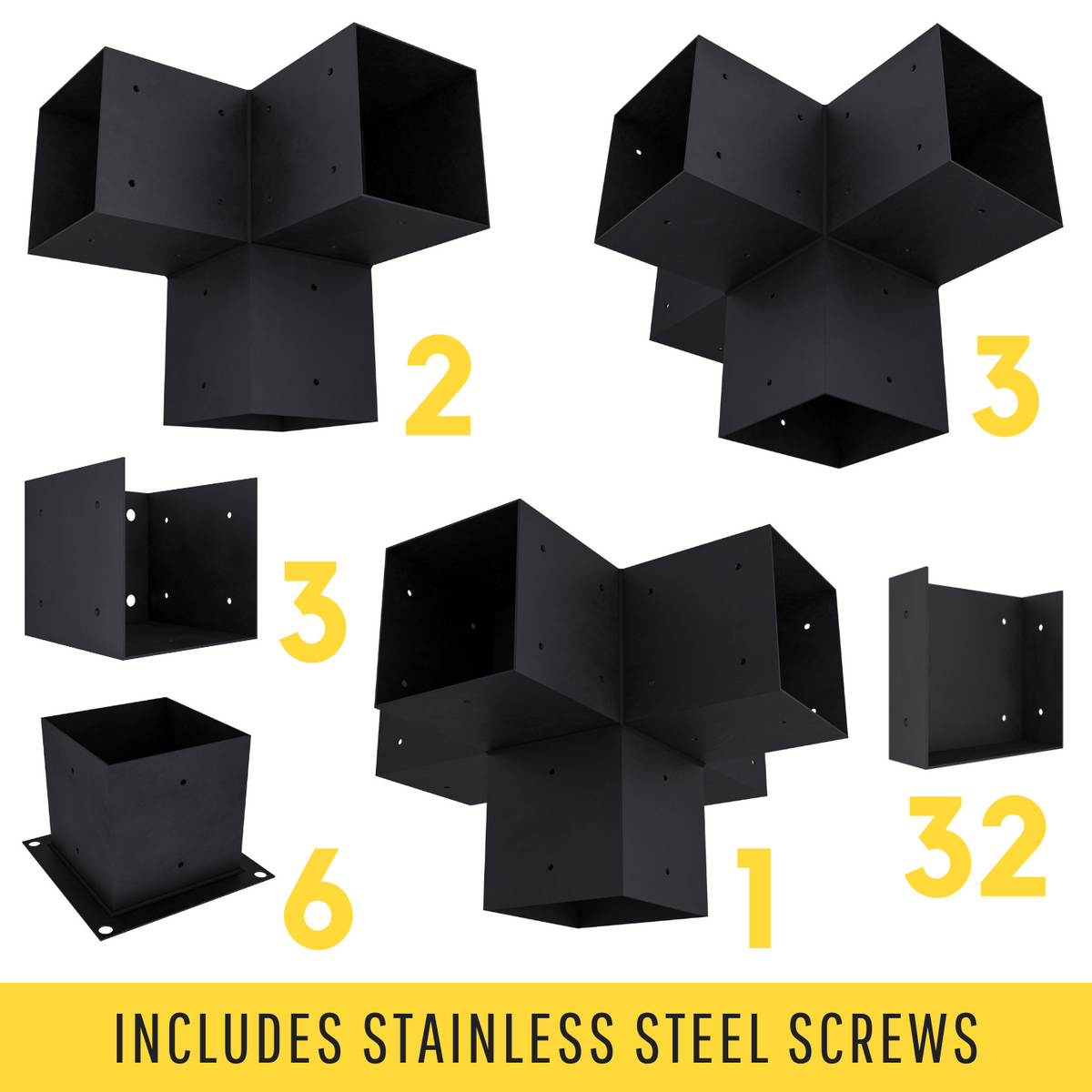

Included in this Pergola Wall Mount Kit:

• 6x base brackets (for 6x6 wood)
• 3x wall-mount brackets (for 6x6 wood)
• 2x 3-arm post brackets (for 6x6 wood)
• 3x 4-arm post brackets (for 6x6 wood)
• 1x 5-arm post bracket (for 6x6 wood)
• 32x 6x6 insert brackets for 16 roof rafters (6x6 wood)
• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

This pergola wall mount kit will accommodate any wall-mounted pergola ranging from 13-24 feet wide (attached to the house) by 13-24 feet deep (out from the home). The pergola does not need to be the exact dimensions shown in the images on this page.

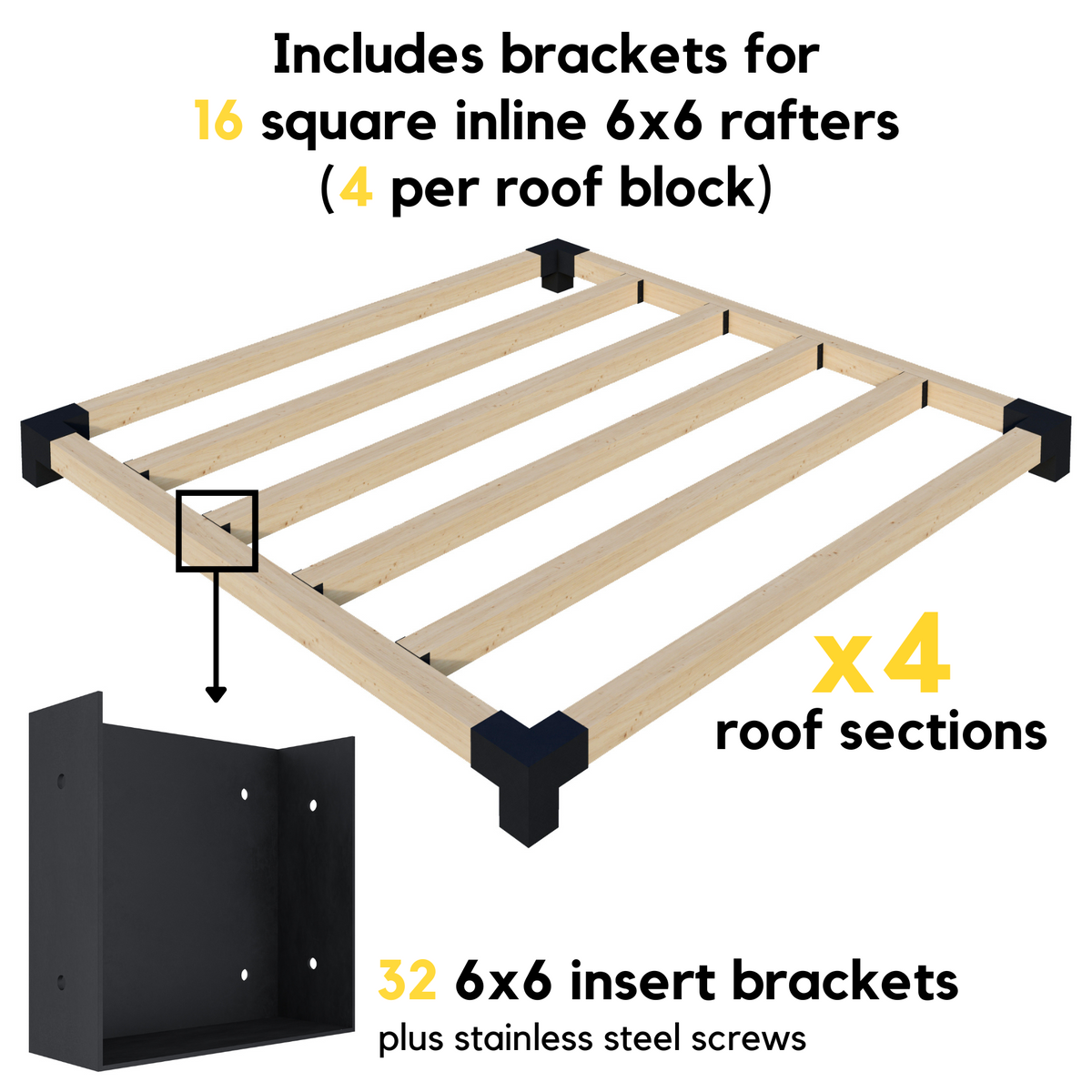

The kit includes 32 6x6 insert brackets. While the intent is that all 32 of these brackets be used to add 4 square 6x6 roof rafters to each of the pergola's 4 roof sections (12' span each with medium spacing), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, increasing the number of slats in a roof/wall section, etc.). You can also purchase additional 6x6 insert brackets here.

Want a Smaller 4x4 Frame Instead?

Click here to see this same pergola wall mount kit but for smaller 4x4 wood posts and 4x4 roof rafters (instead of 6x6 wood posts and 6x6 roof rafters).

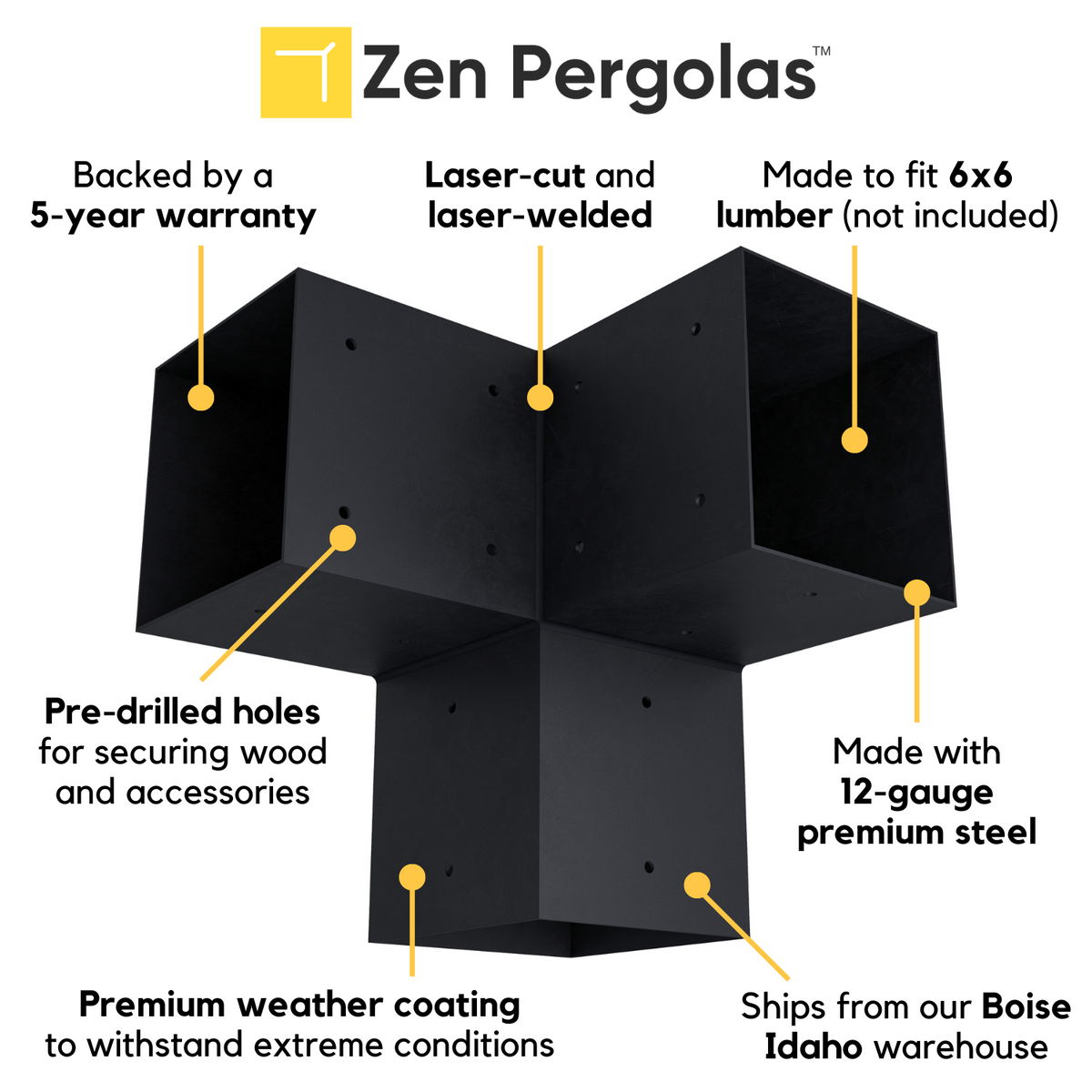

About Our Steel 6x6 Pergola Brackets:

• Made with premium quality steel
• Made of 12-gauge steel (~2.6mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5" x 5.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
